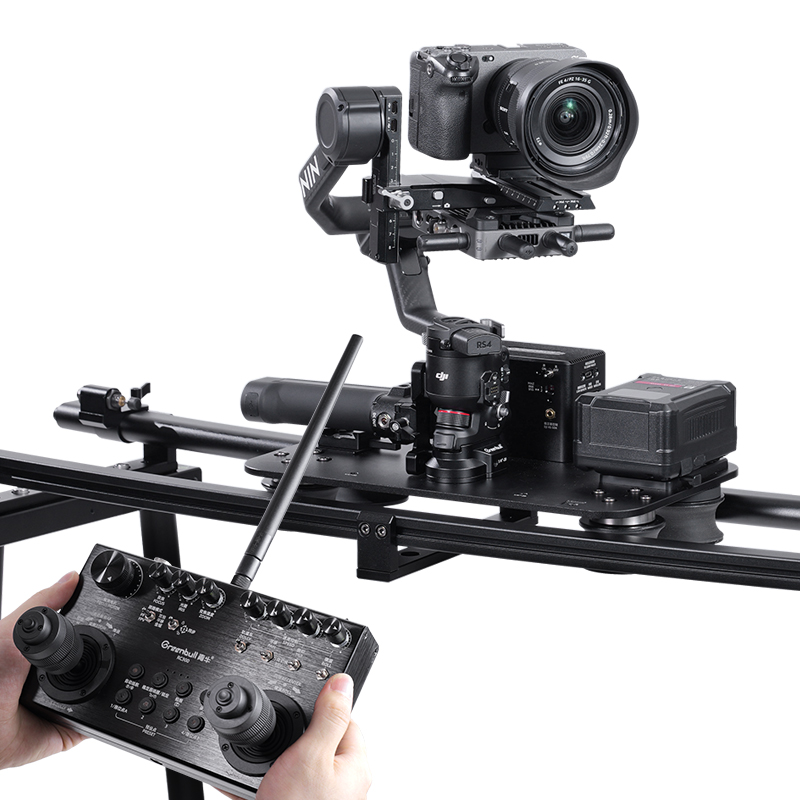

XT5 smart主图3 英文版

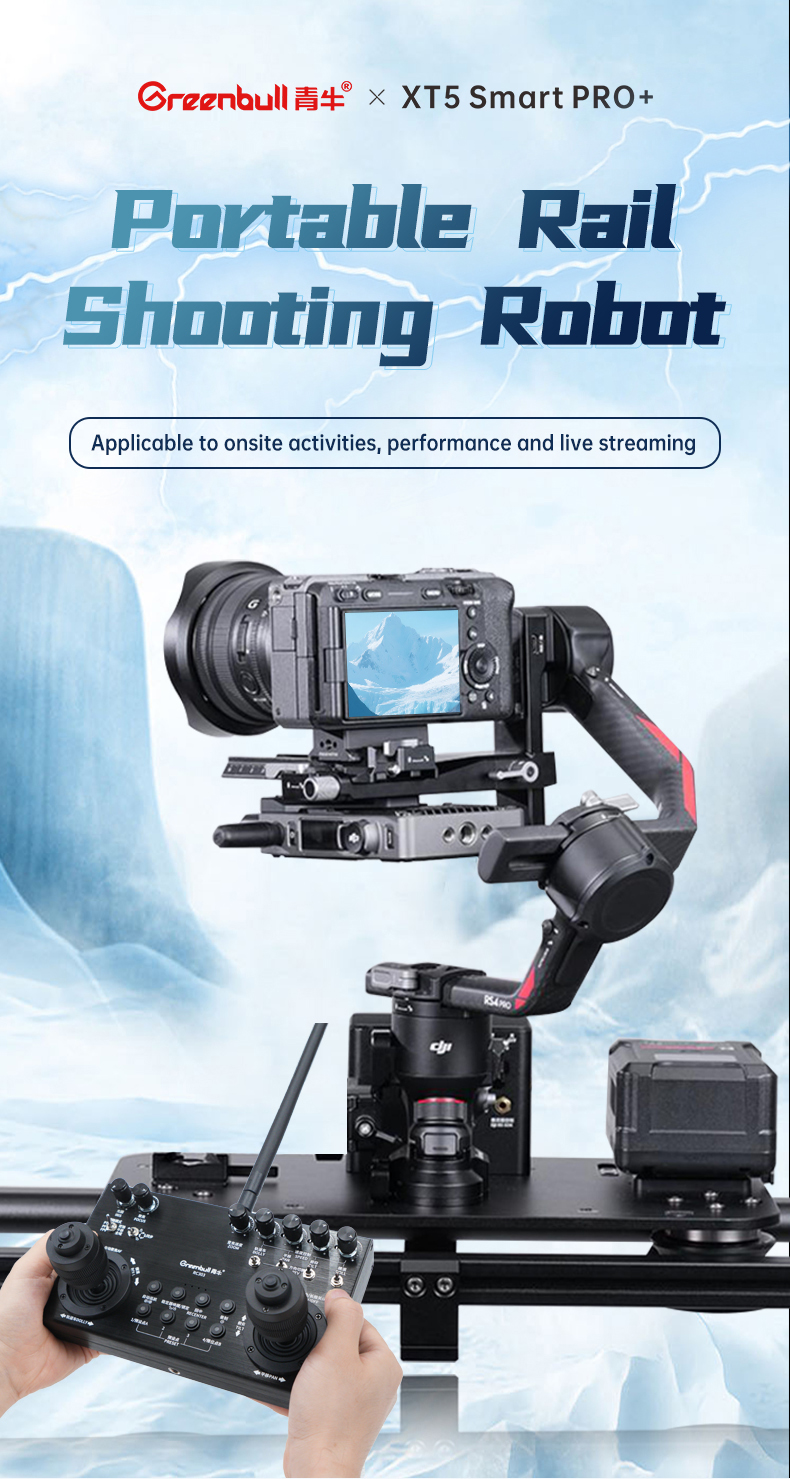

Portable Rail Shooting Robot

Applicable to onsite activities, performance and live streaming

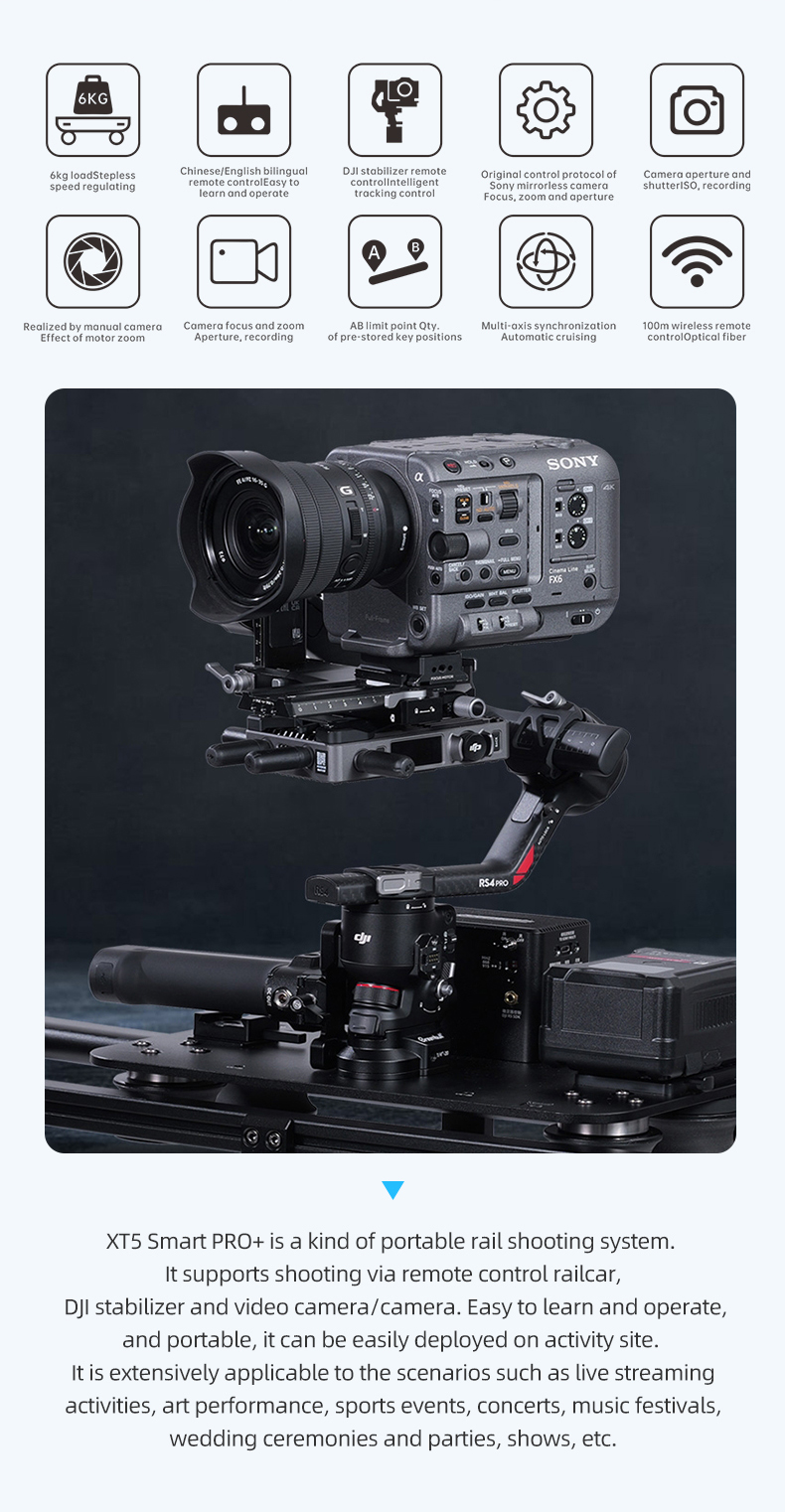

XT5 smart is a kind of portable remote control-based rail shooting system. It supports shooting via remote control railcar, DJI stabilizer and video camera/camera, and is easy to learn and operate and portable. It is extensively applicable to the scenarios such as activity site, art performance, sports events, concerts, music festivals and reality shows.

XT5 smart主图3 英文版 Bring the best quality of live streaming

with the top-of-the-line device

Greenbull XT5 smart

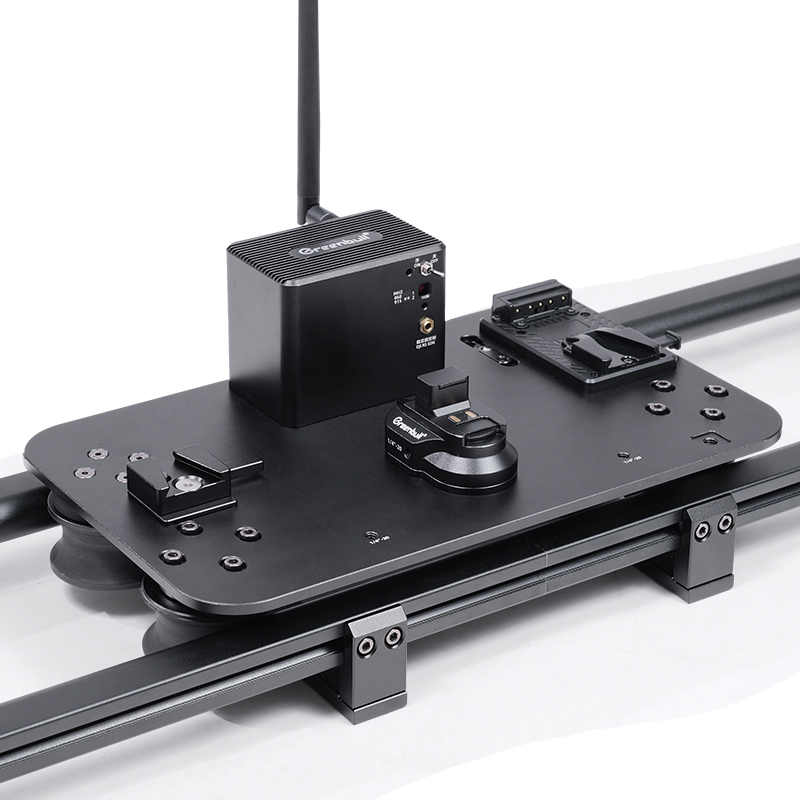

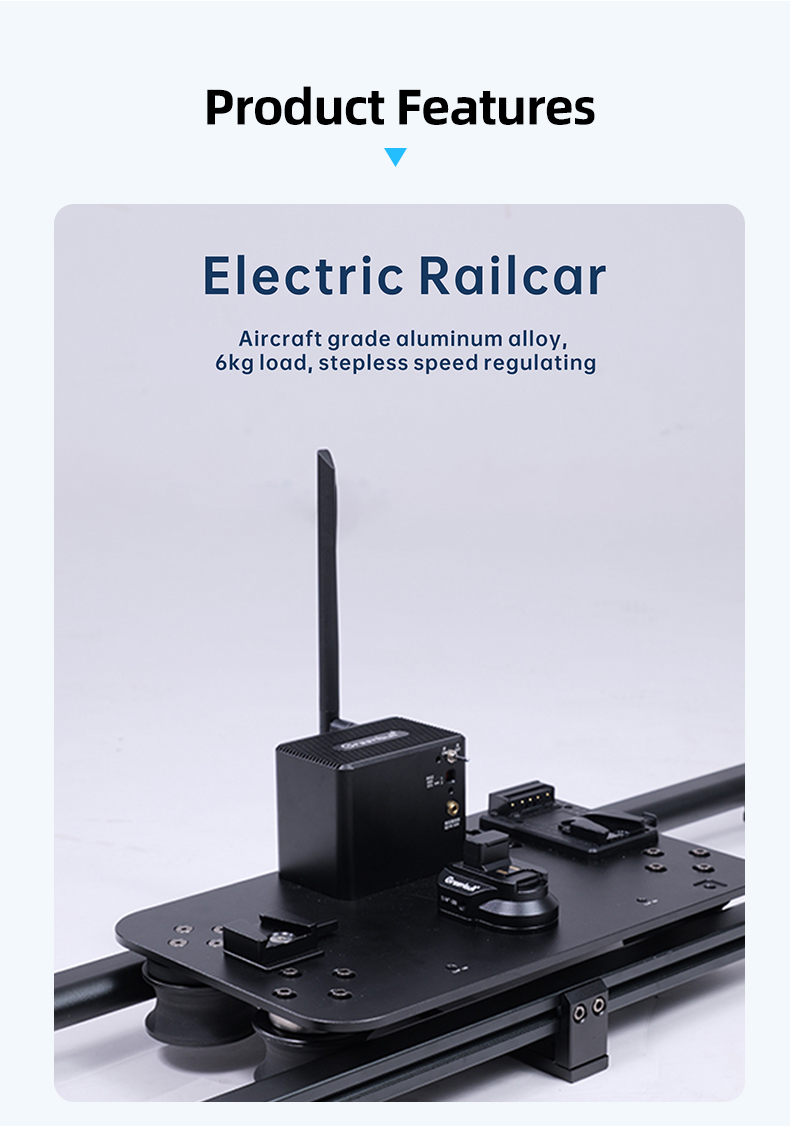

XT5 smart主图5 英文版 Electric Railcar

6kg load, stepless speed regulating

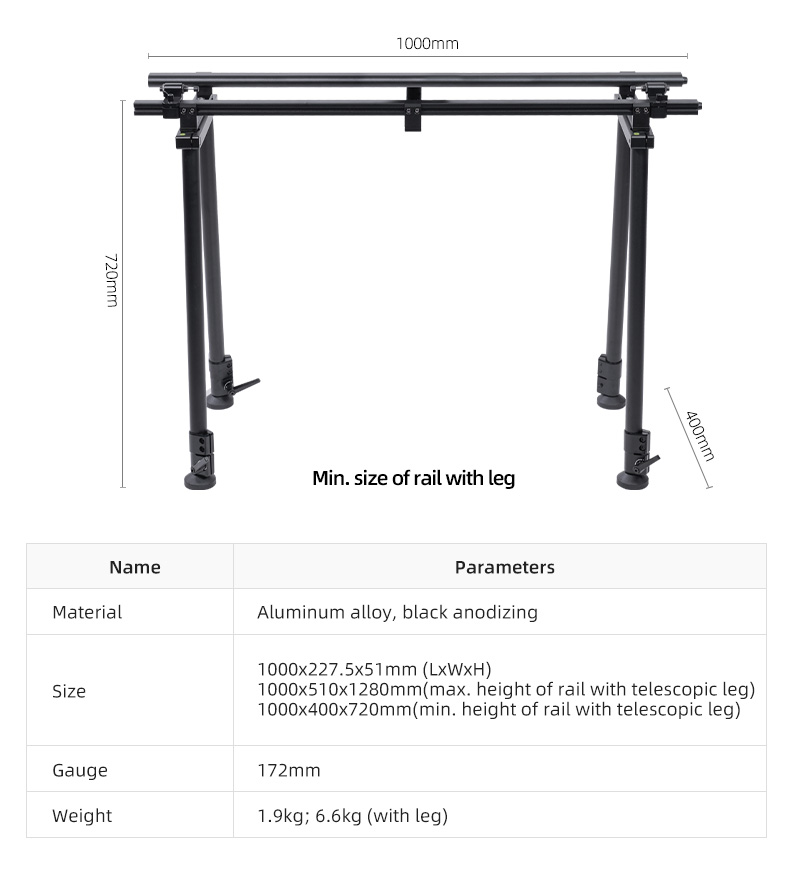

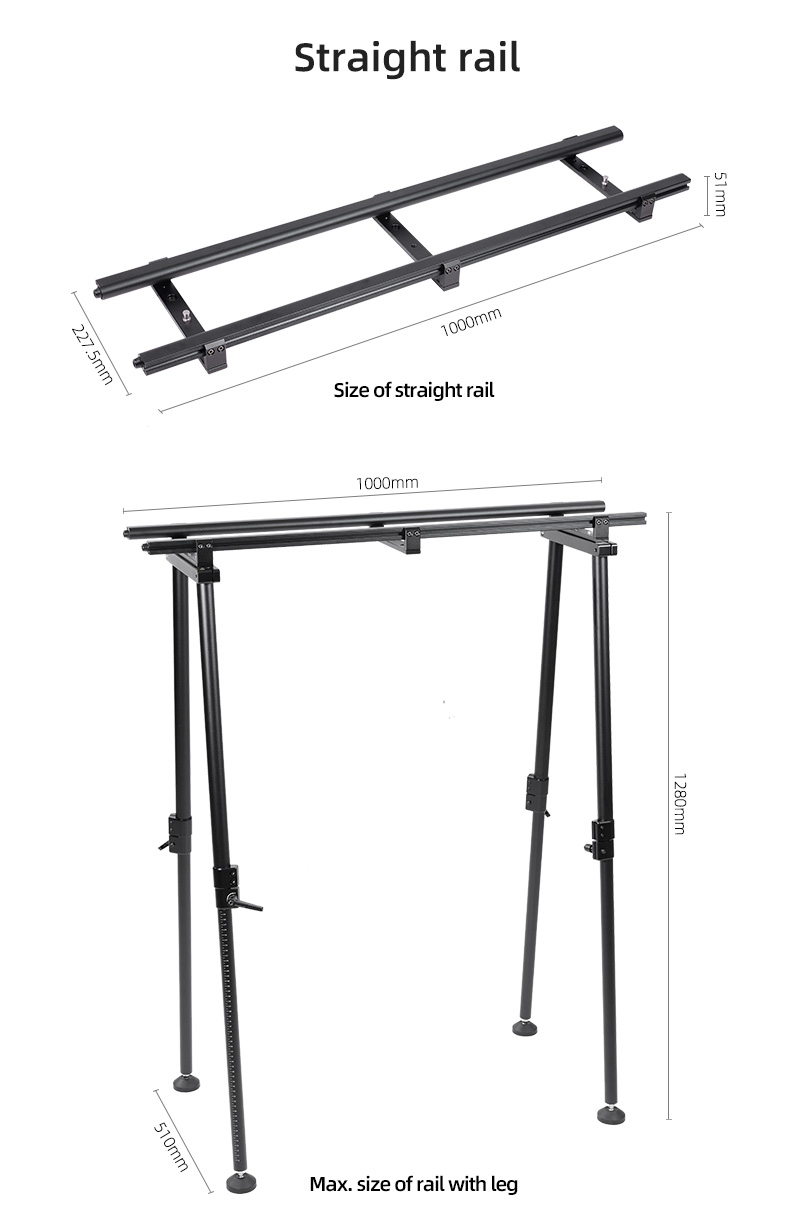

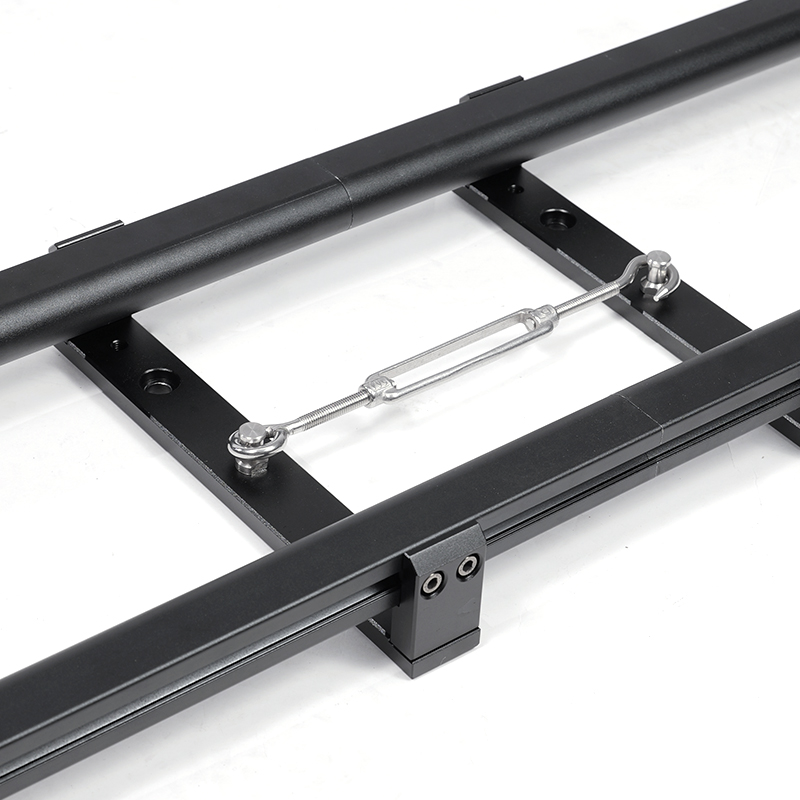

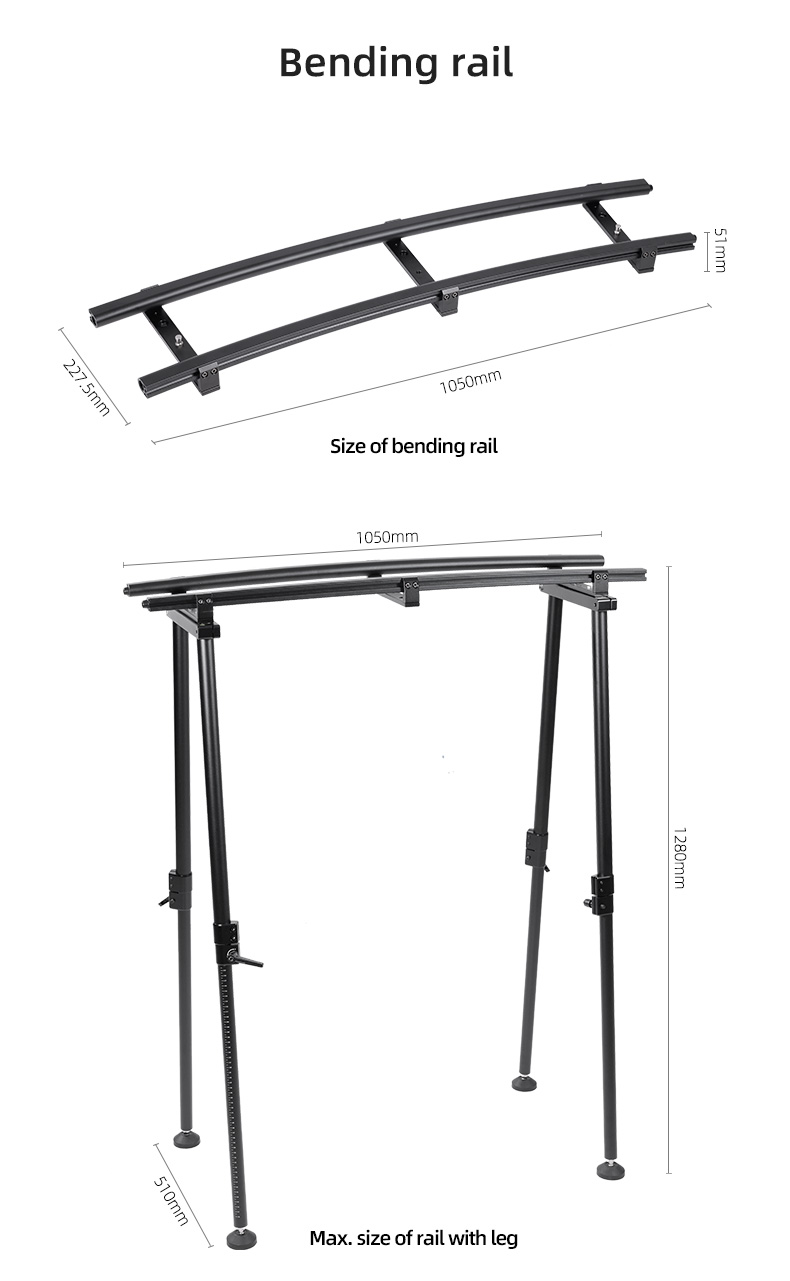

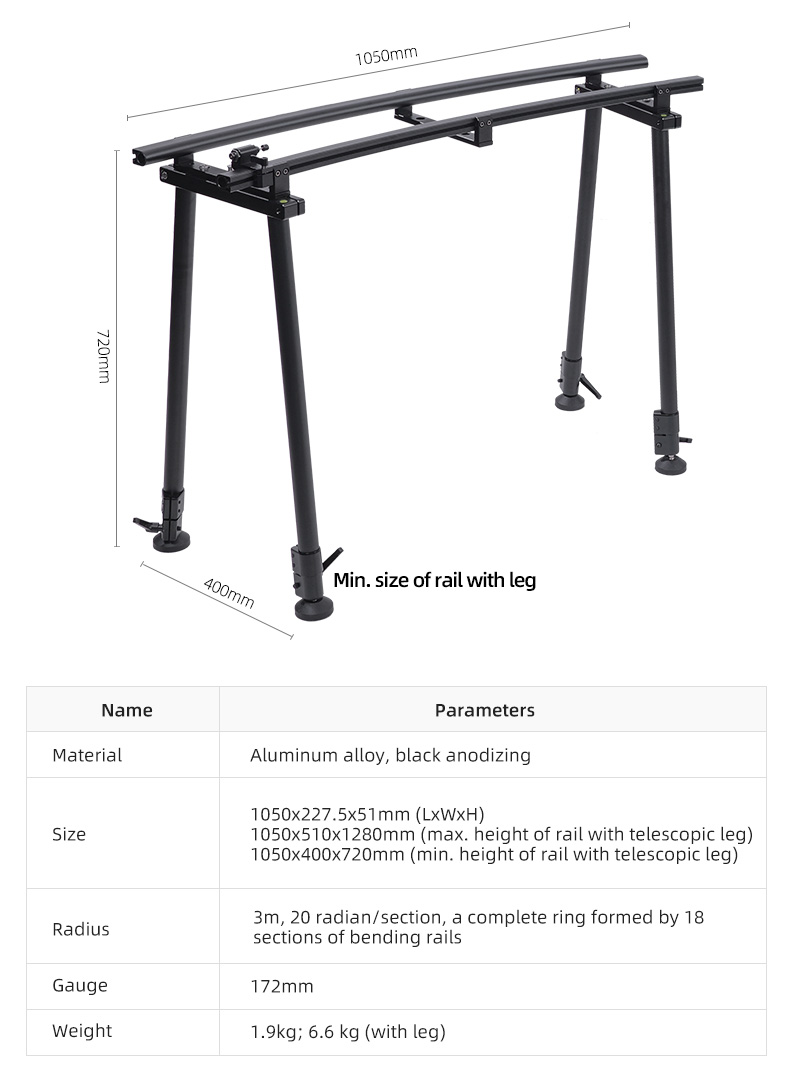

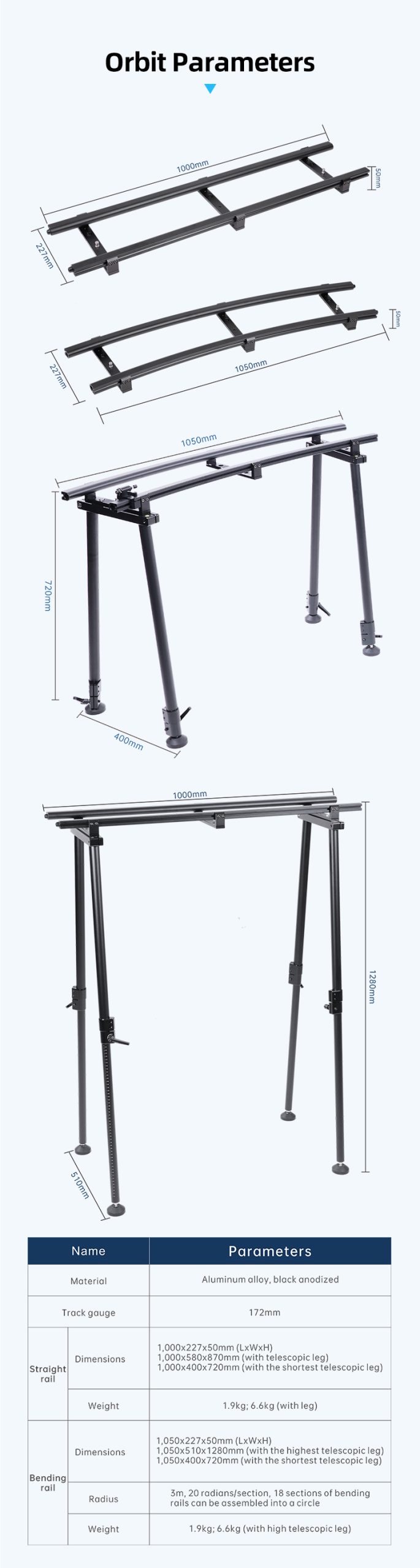

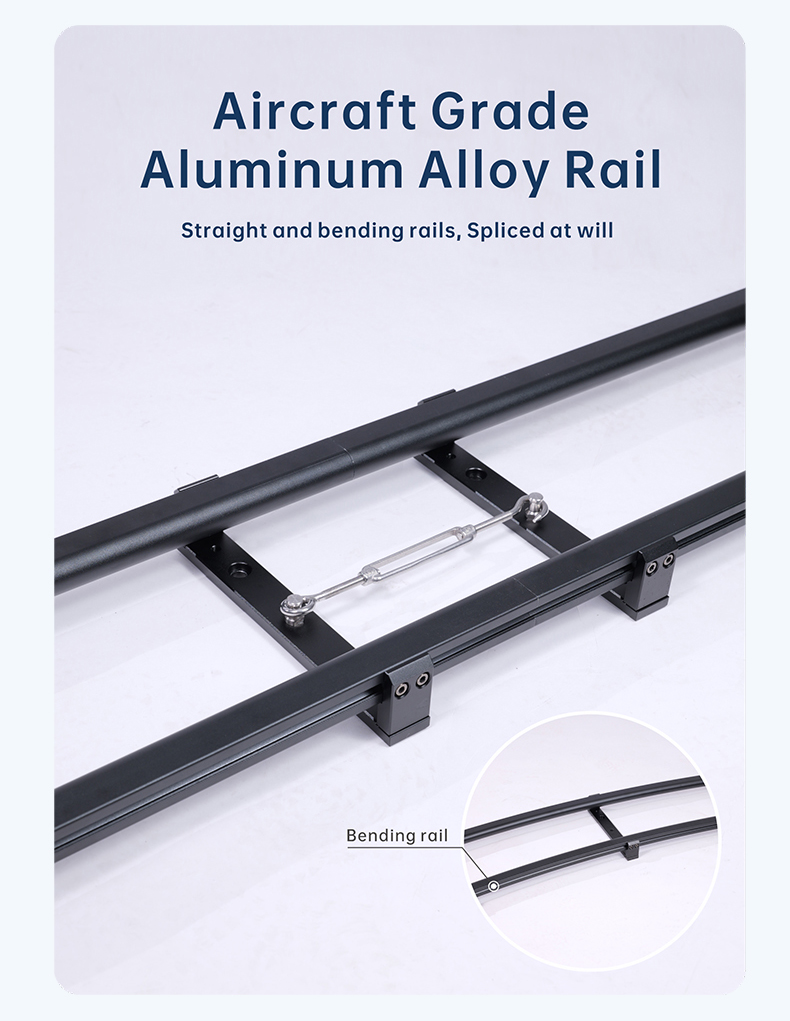

XT5 smart主图6 英文版 Aircraft Grade Aluminum Alloy Rail

Straight and bending rails can be spliced at will

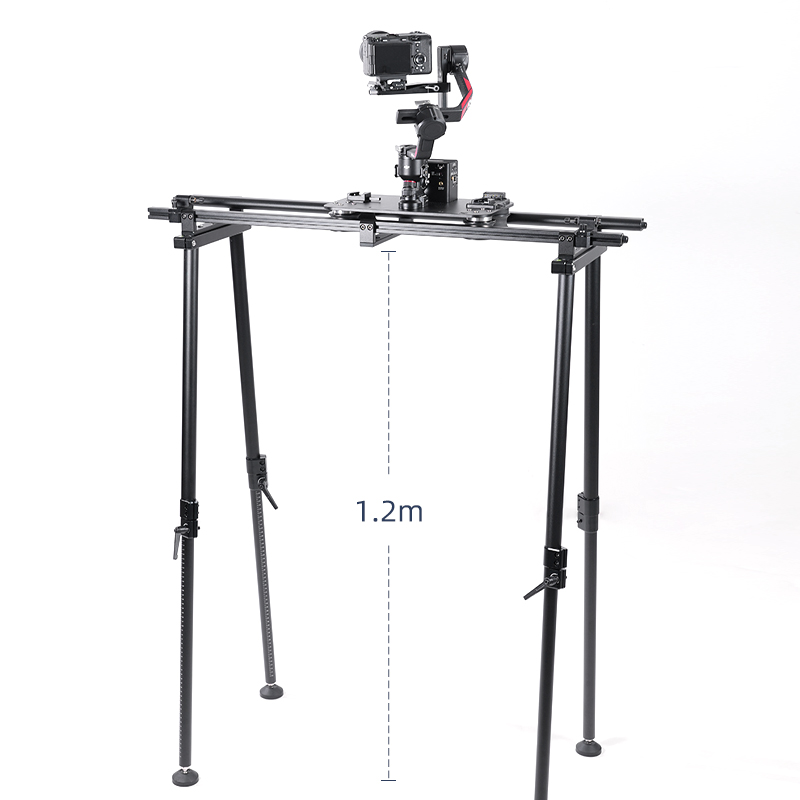

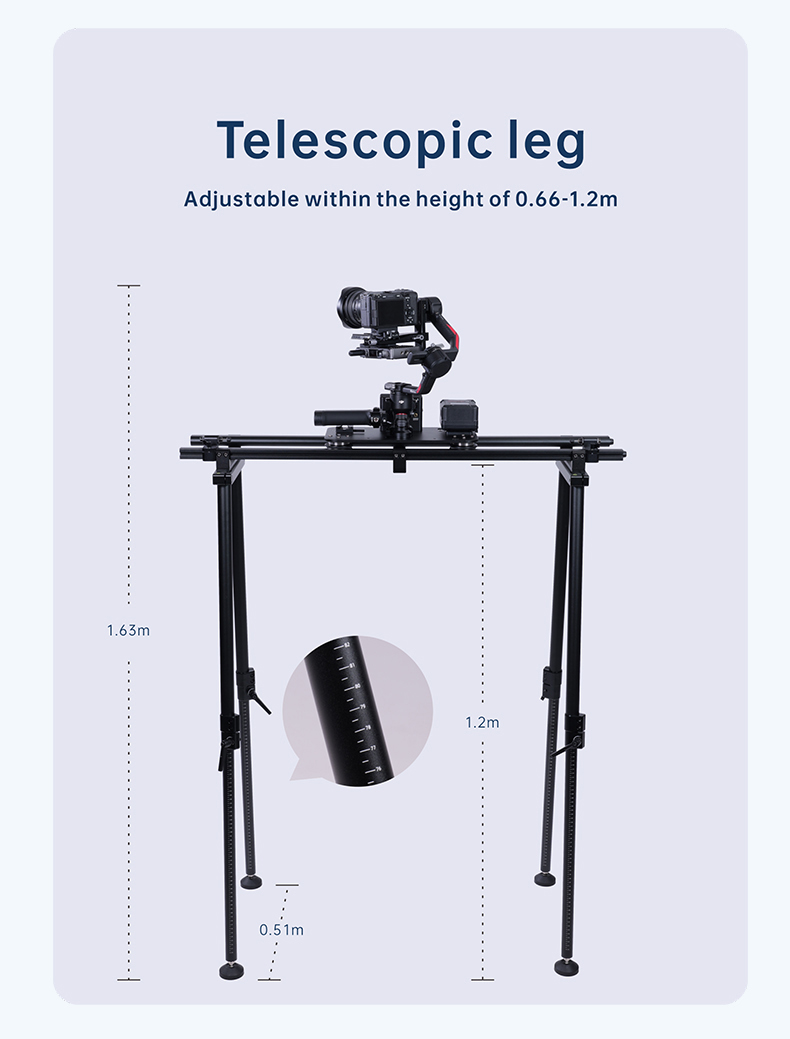

XT5 smart主图7 英文版 1.2m Telescopic Leg

Stepless adjustment of camera height

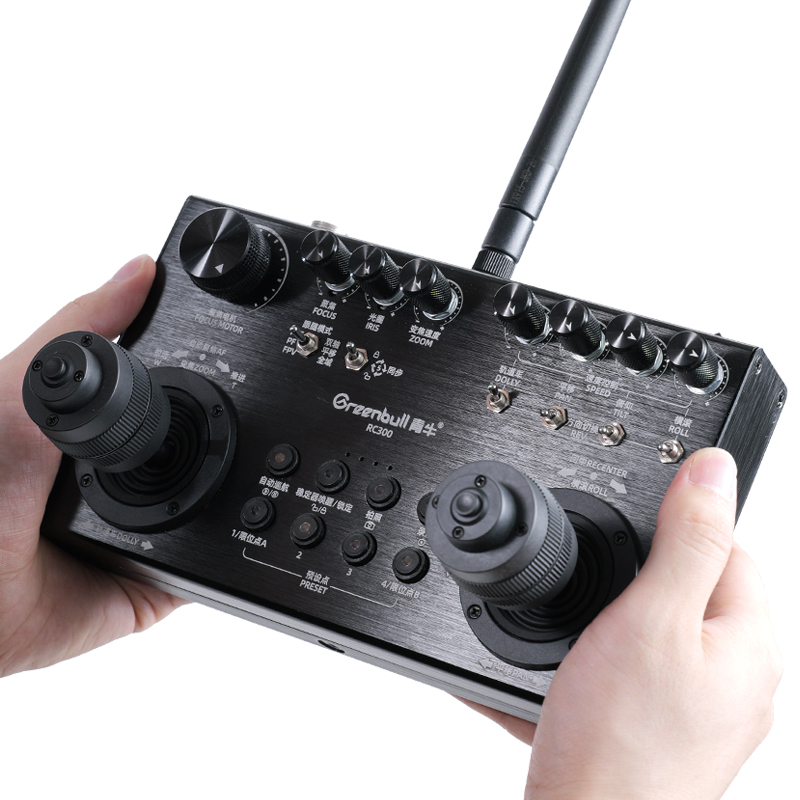

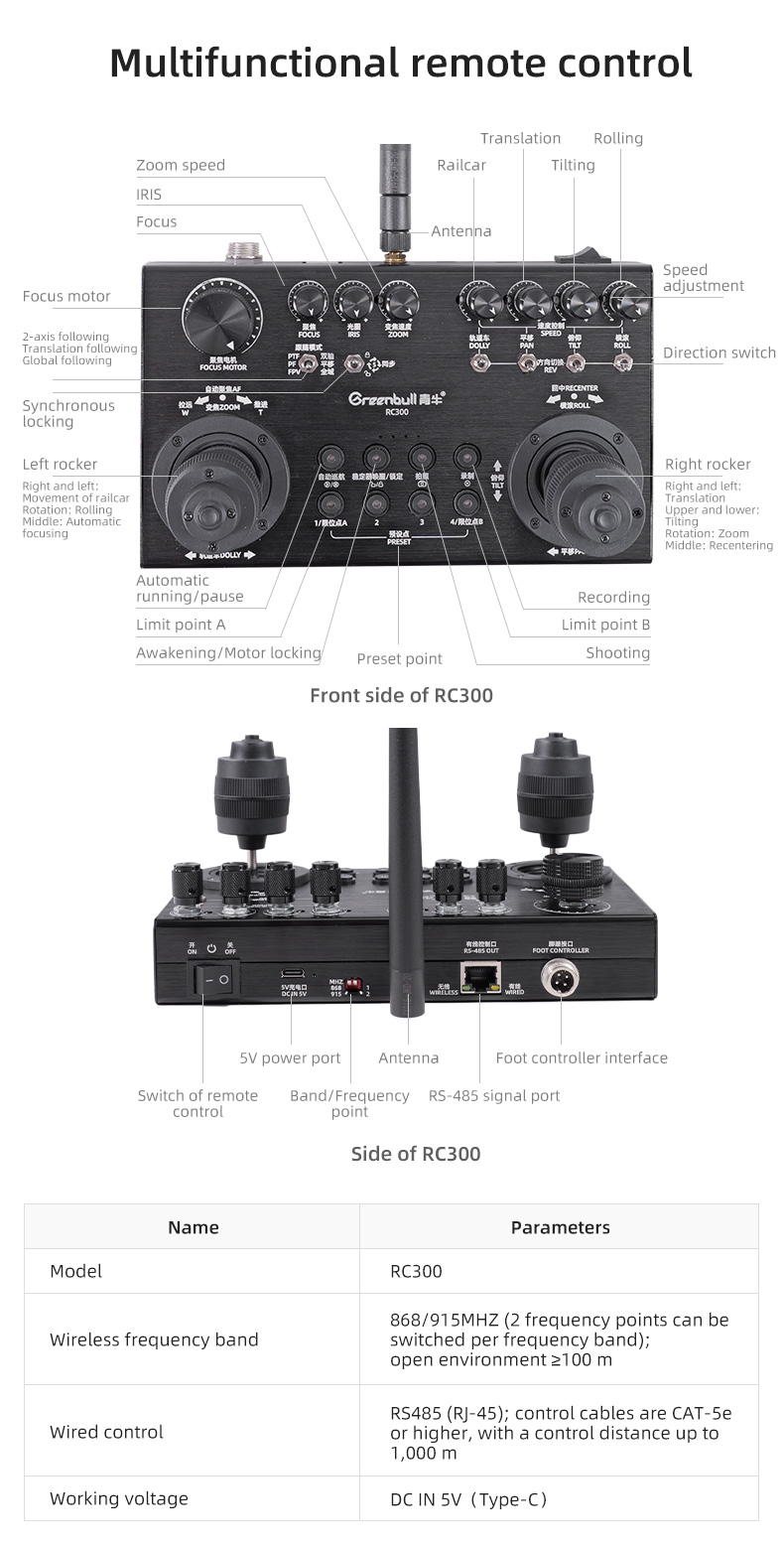

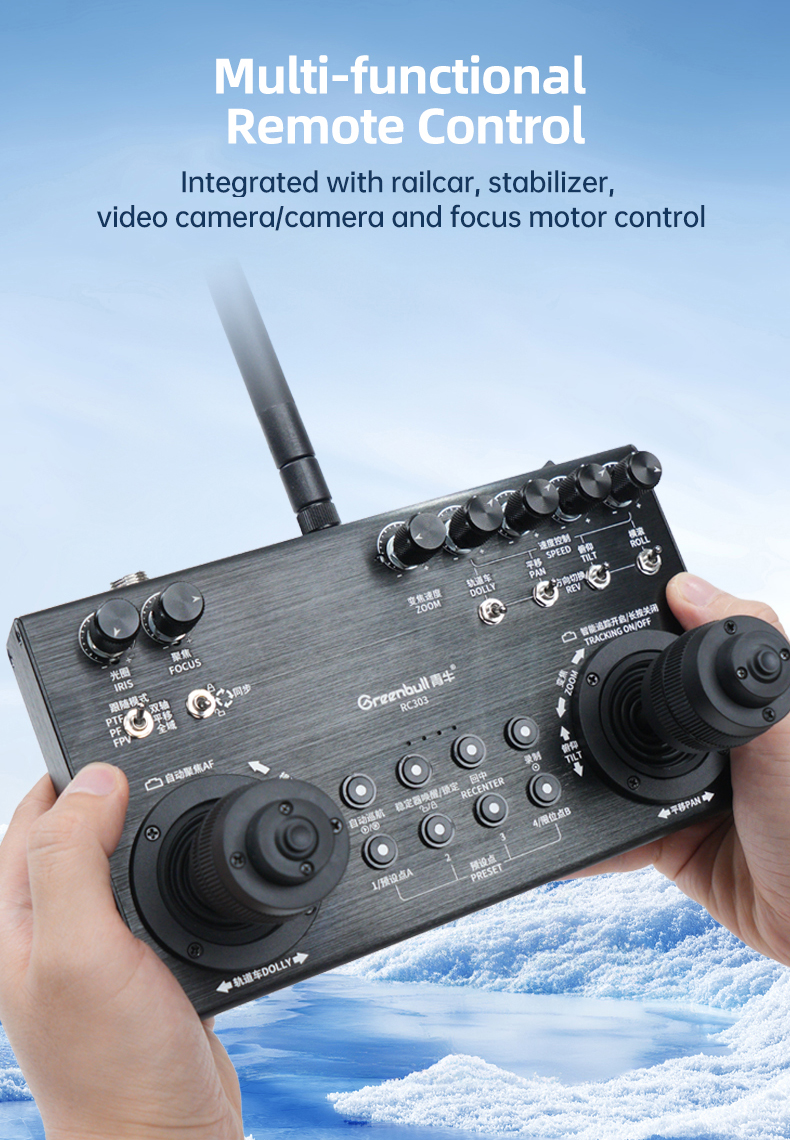

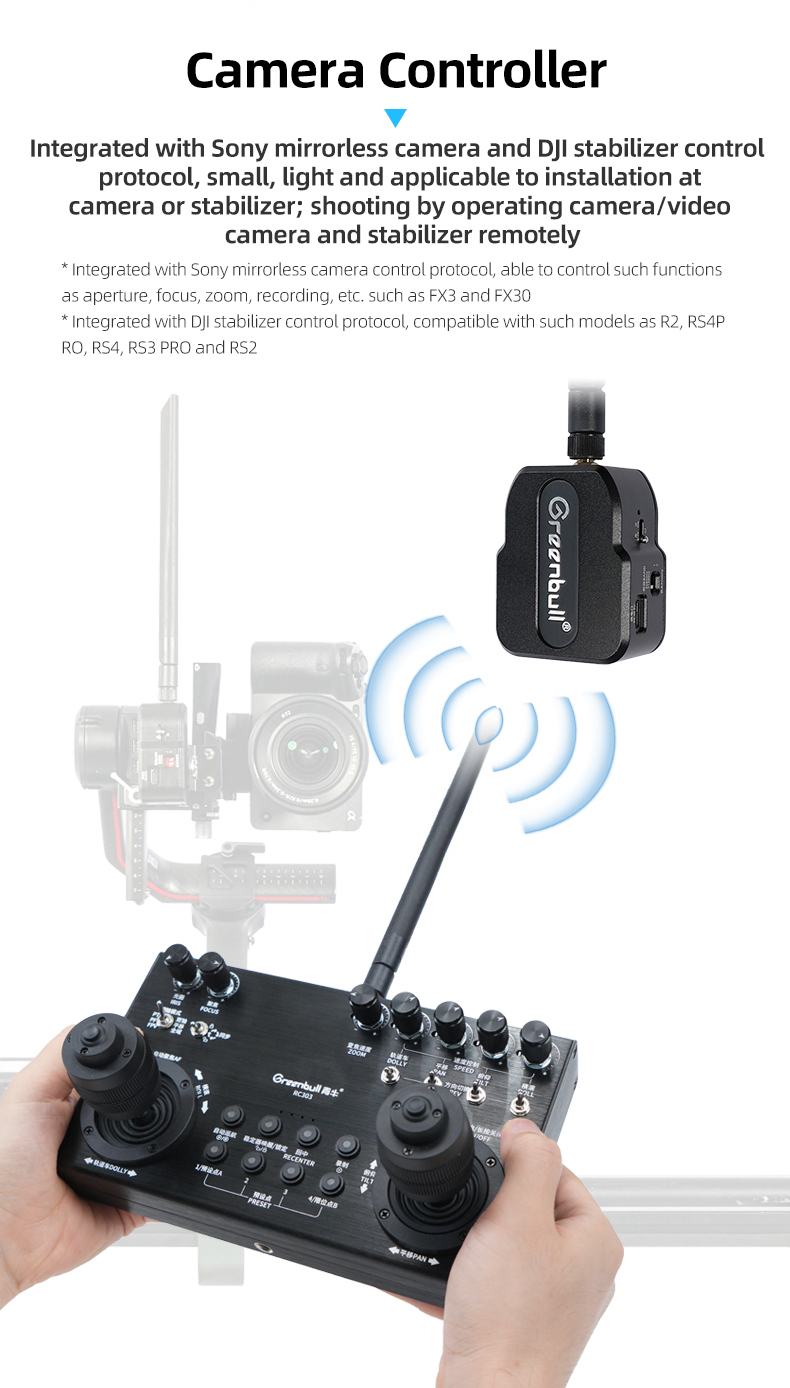

XT5 smart主图4 英文版 Multifunctional Remote Control

Integrated the functions of railcar, stabilizer, video camera/camera and focus motor control

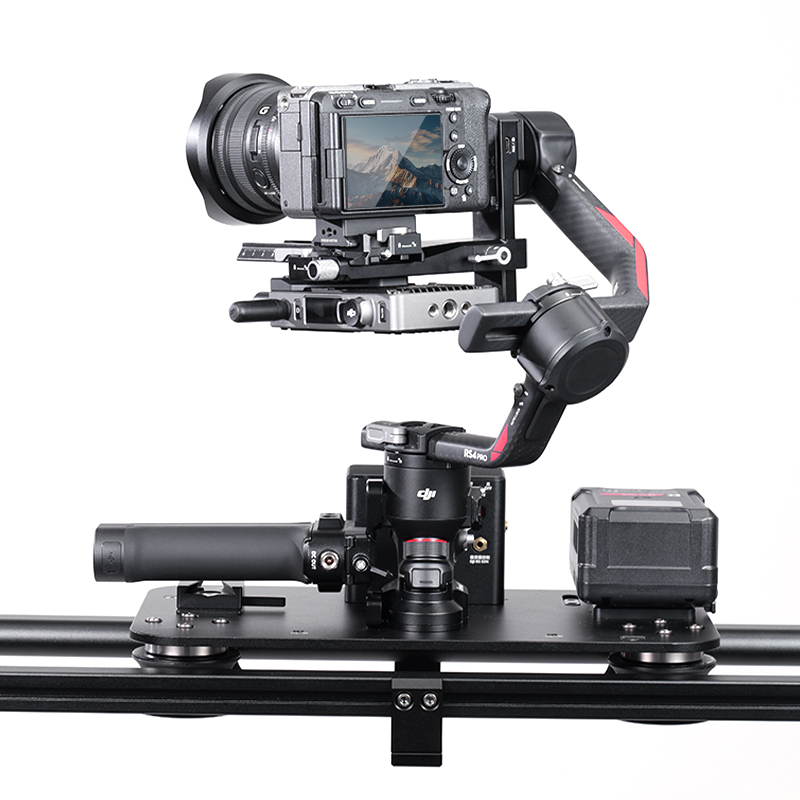

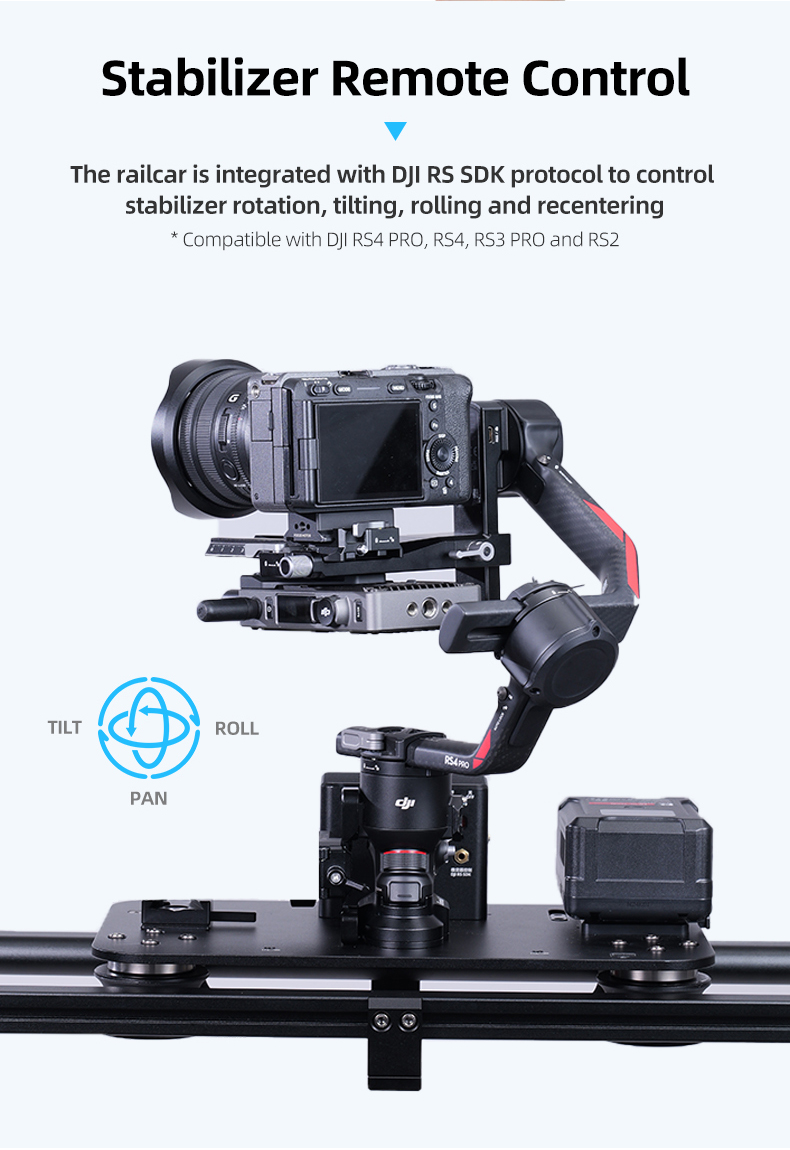

XT5 smart主图8 英文版 Stabilizer Remote Control

Integrated DJI RS SDK protocol to control stabilizer rotation, tilting, rolling, motor locking and recentering

*Compatible to DJI RS4PRO/RS4/RS3 PRO/RS2

XT5 smart主图9 英文版

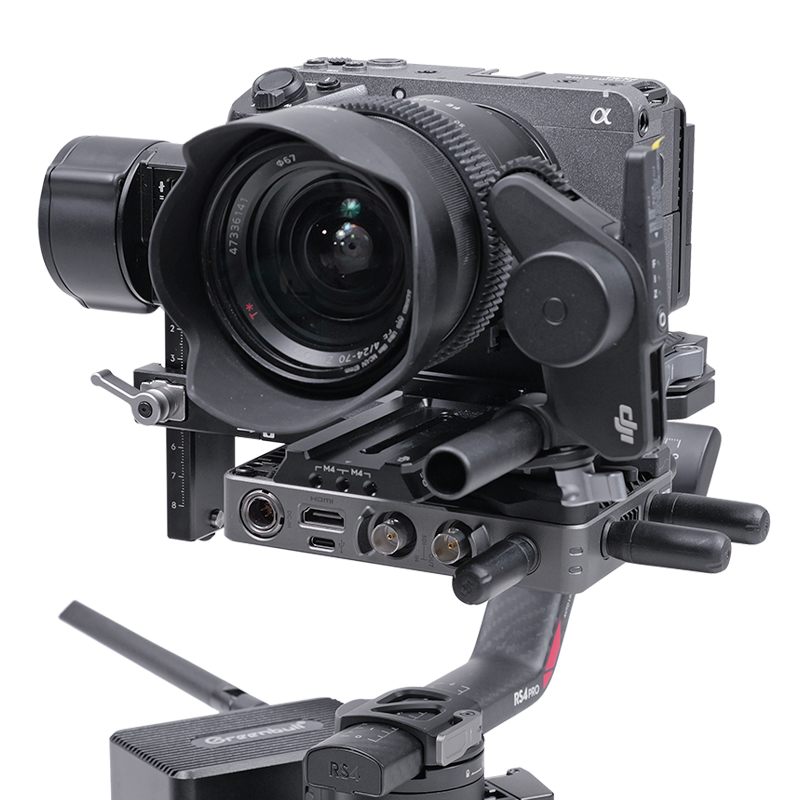

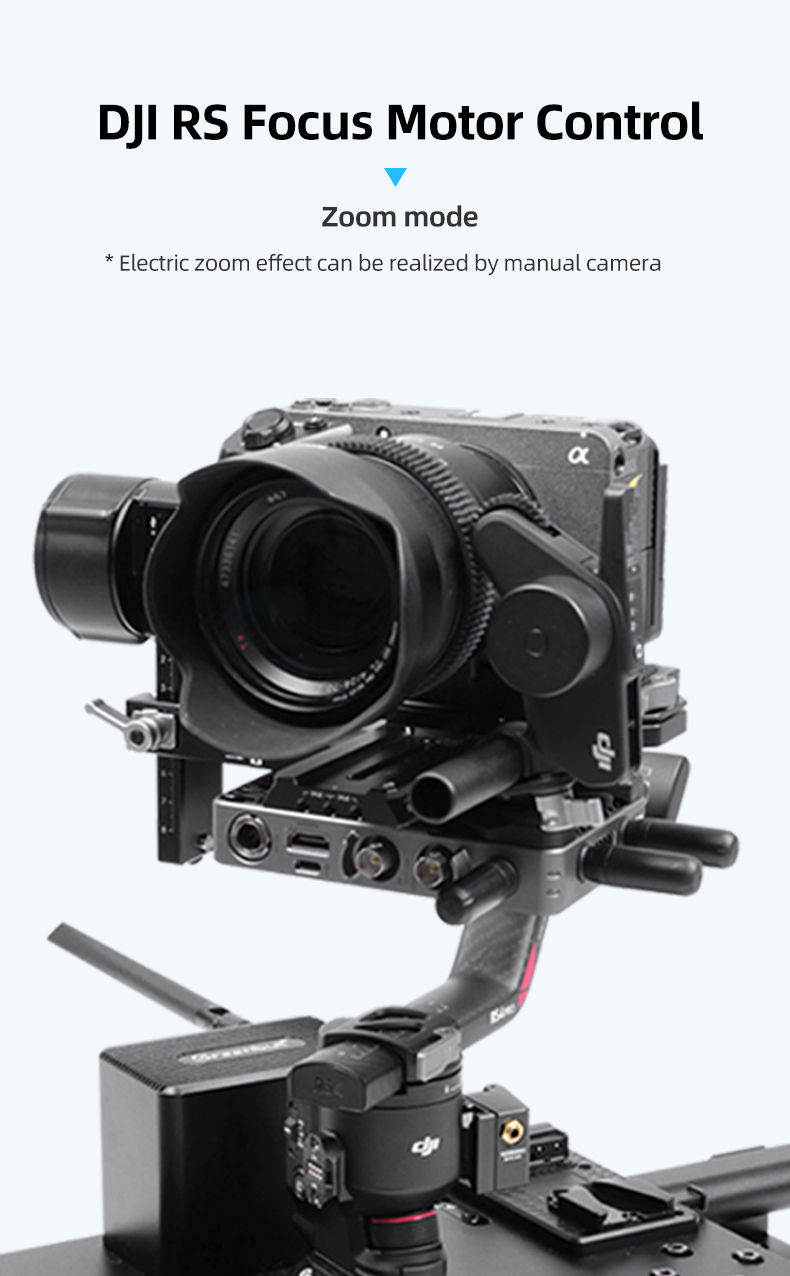

Focus Motor Control

Compatible to DJI RS focus motor: Focus mode and zoom mode

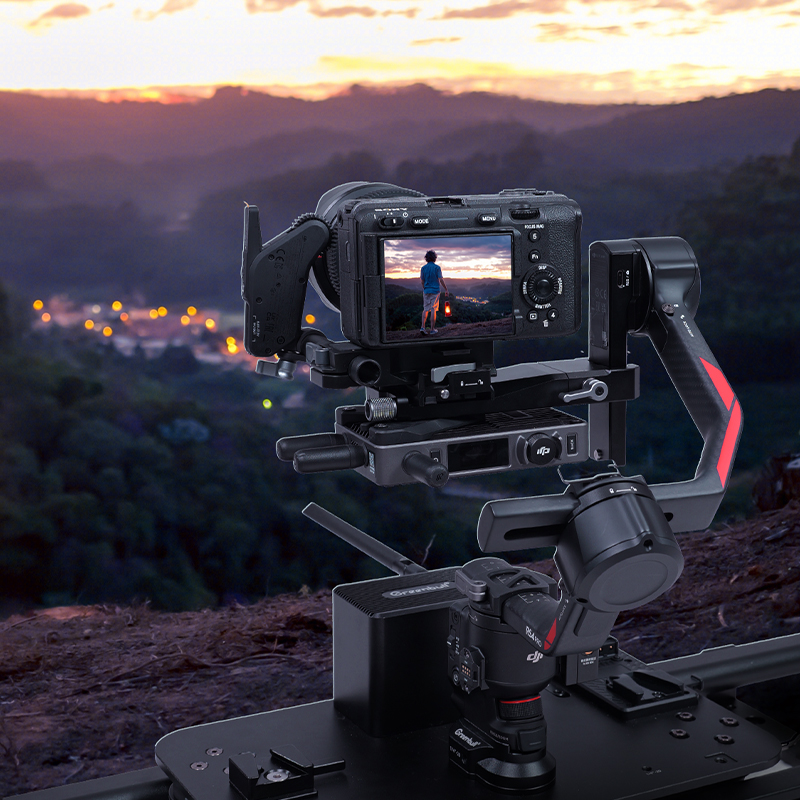

XT5 smart主图10 英文版 Camera Remote Control

Recording, photographing and autofocus

*Applicable to all compatible cameras, such as DJI RS4 PRO/RS4/RS3 PRO/RS2

For details about models, please visit DJI’s official website

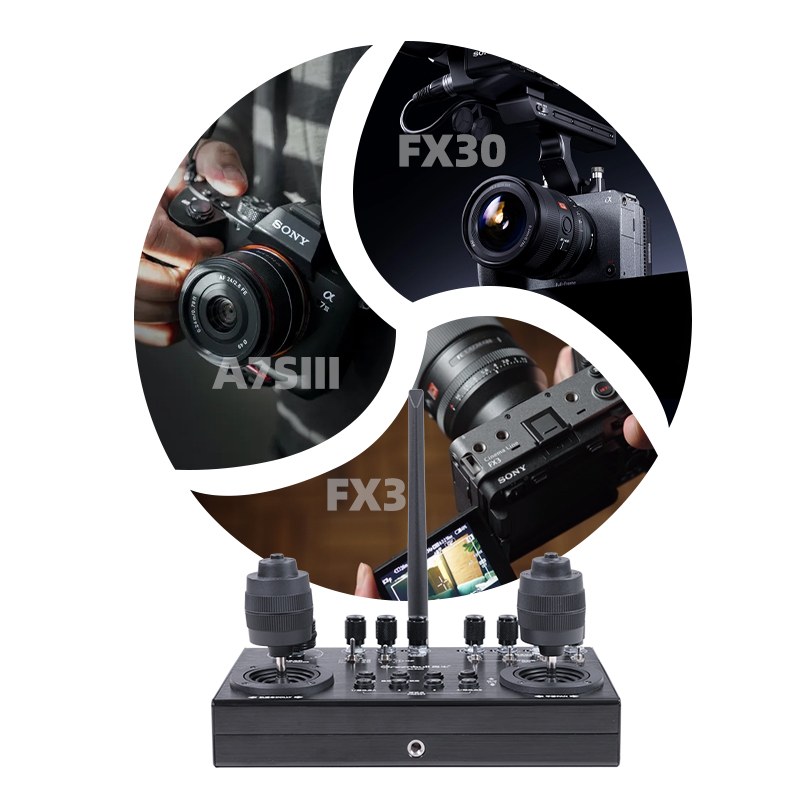

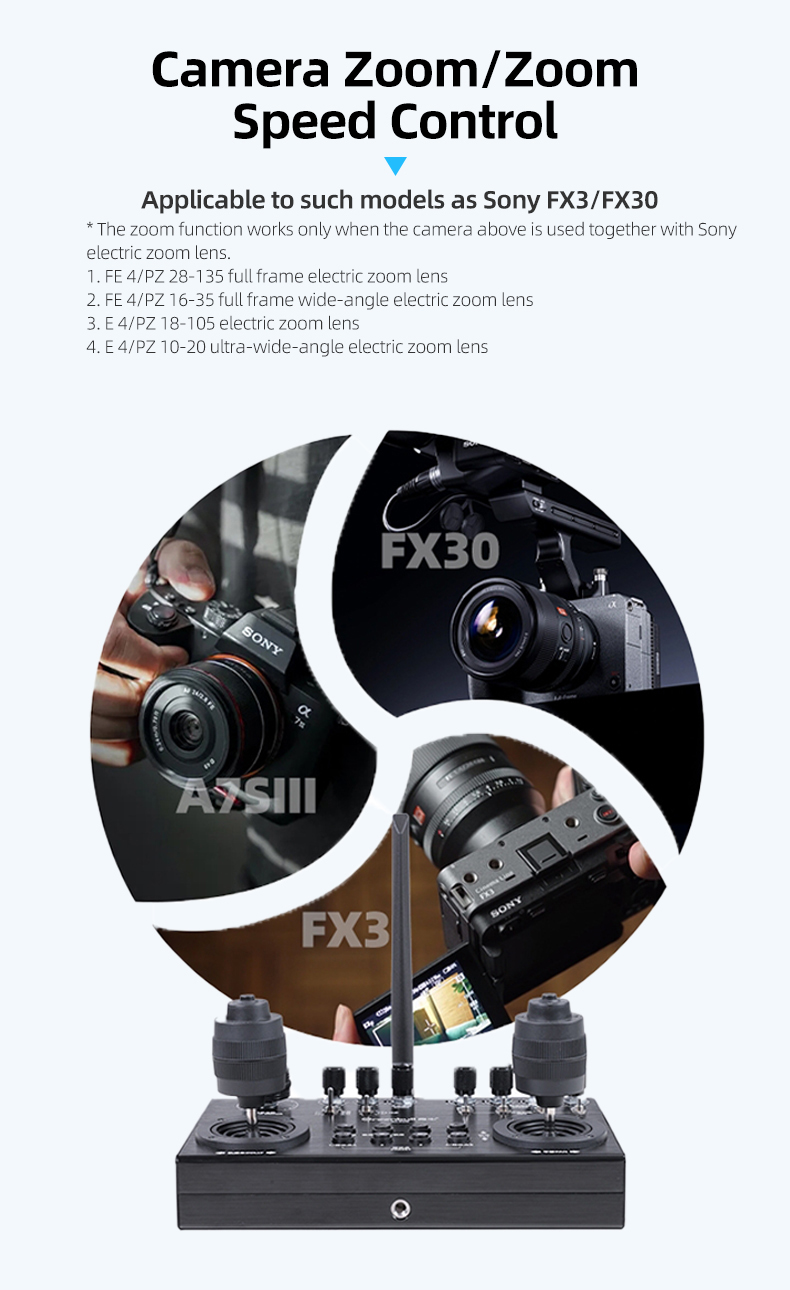

XT5 smart主图11 英文版 Camera Zoom/Zoom Speed Control

Applicable to such models as Sony A7SIII, FX3 and FX30

* The zoom function of remote control works only when the above camera is used with Sony Motor Zoom Lens.

For example:

  1. FE PZ 16-35mm F4 G Full-frame wide-angle motor zoom lens (SELP1635G)
  2. E PZ 18-105mm F4 G OSS Motor zoom lens (SELP18105G)
  3. E PZ 10-20mm F4 G ultra-wide field electric zoom G lens SELP1020G

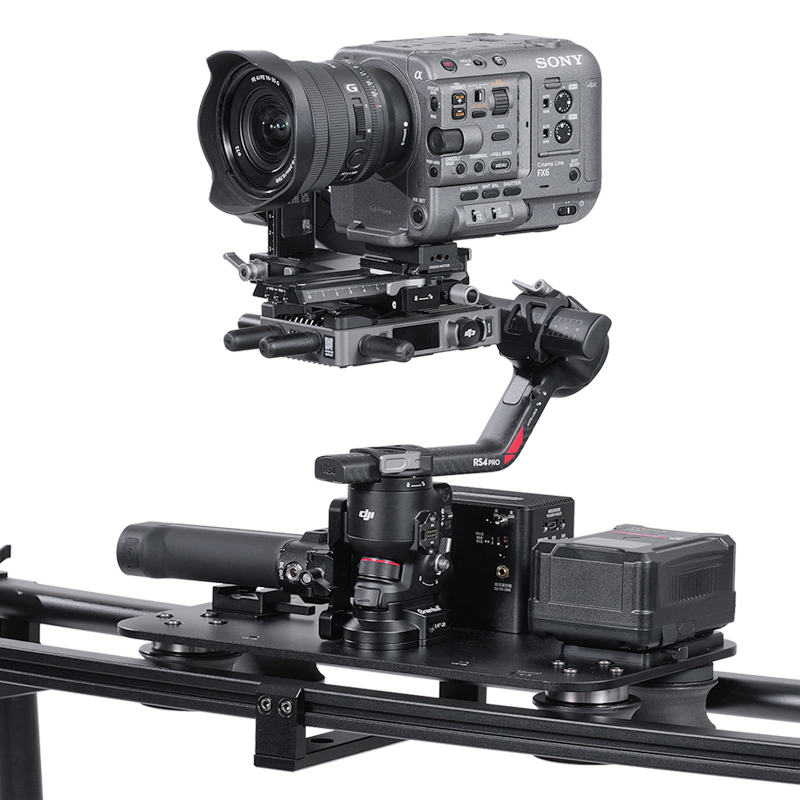

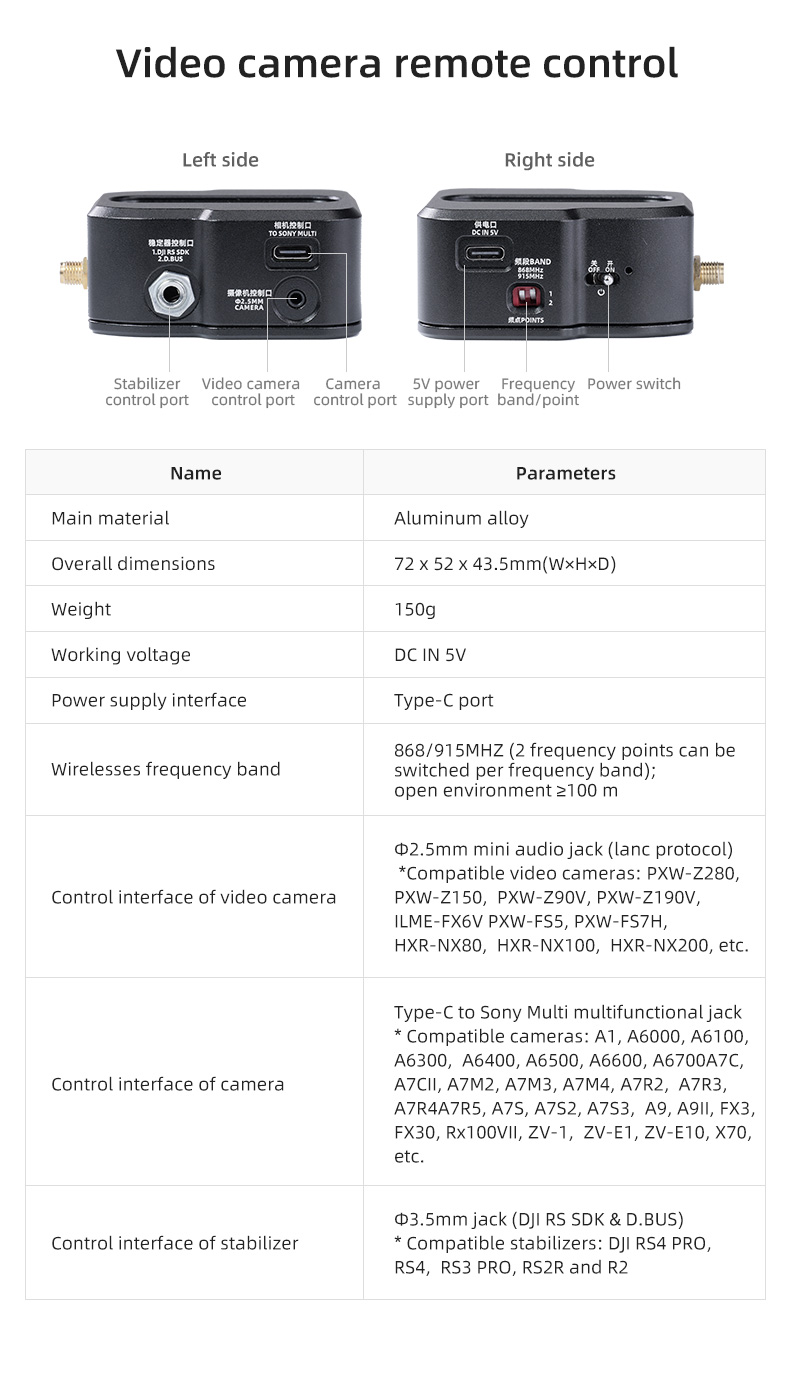

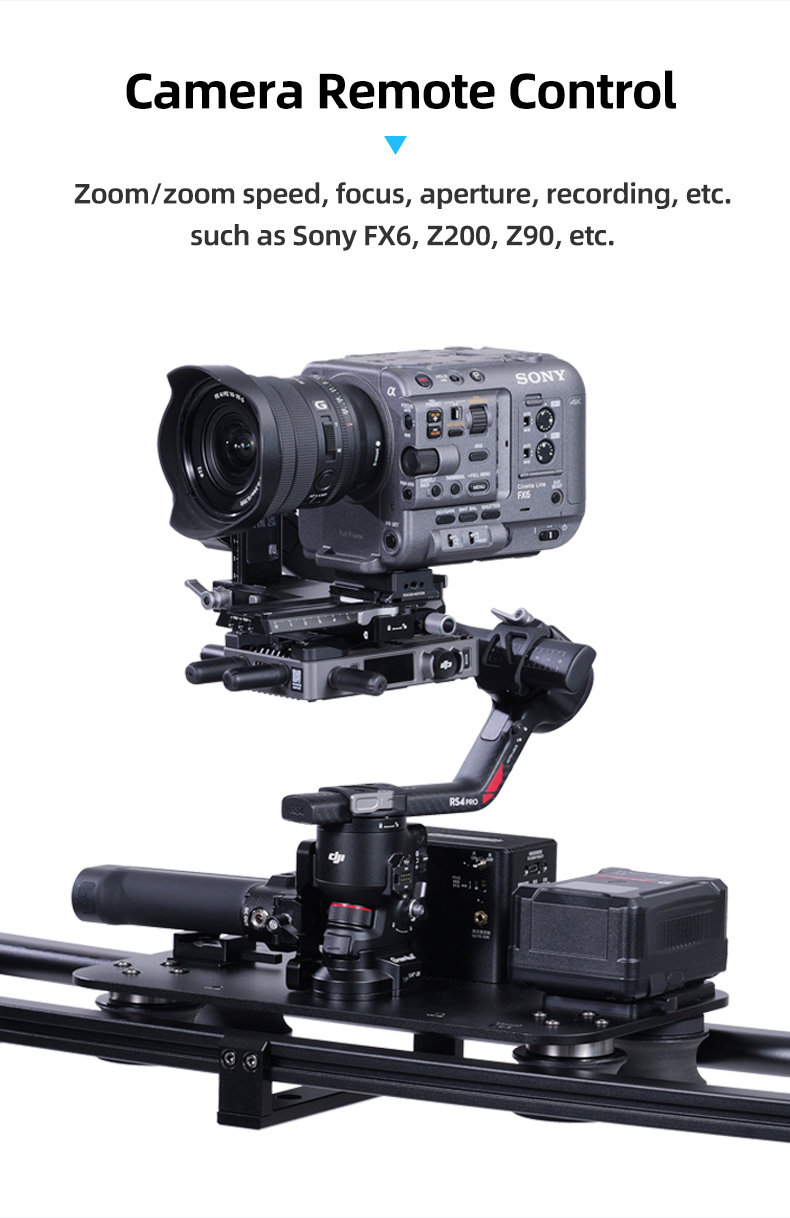

XT5 smart主图12 英文版 Video Camera Remote Control

Functions including zoom/zoom speed, focus, aperture, recording, etc.,

such as Sony Z90, FX6, etc.

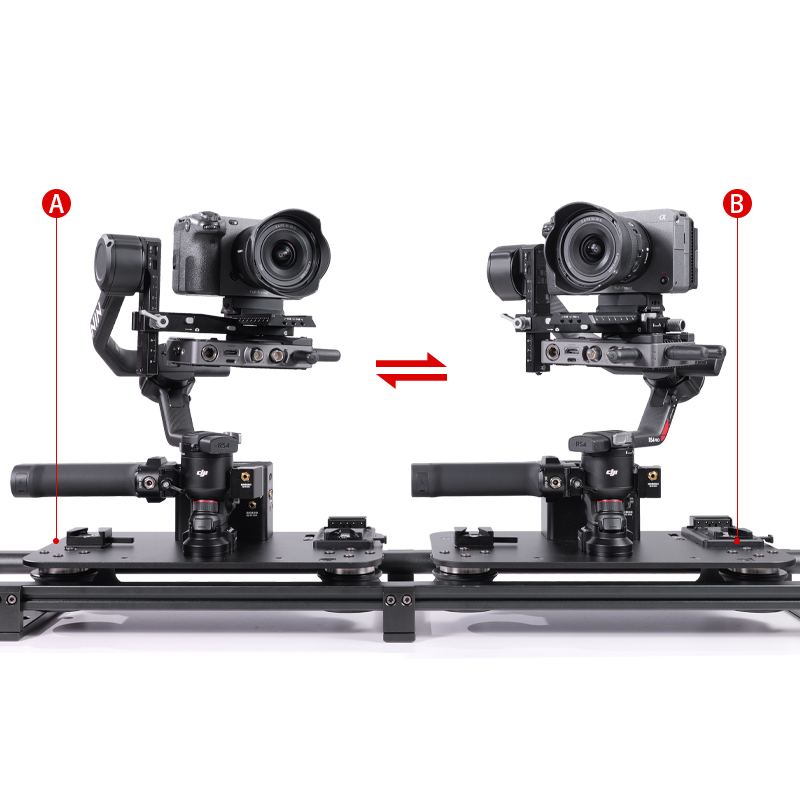

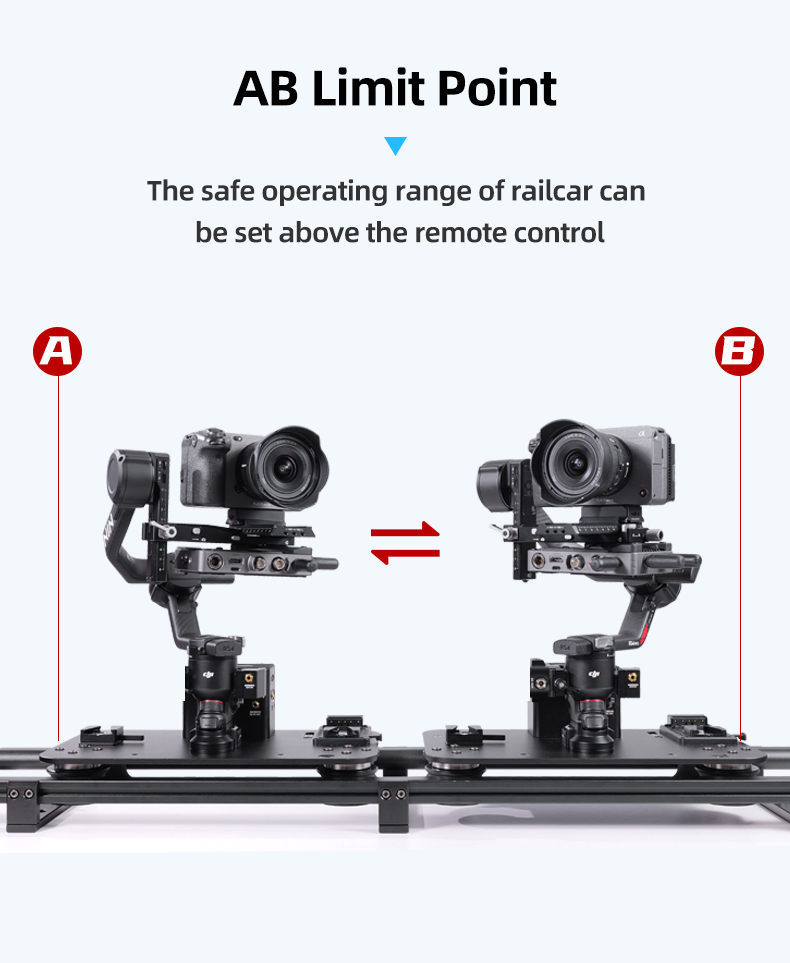

XT5 smart主图13 英文版 A and B Limit Points

Set via remote control easily; scope of safety running of railcar

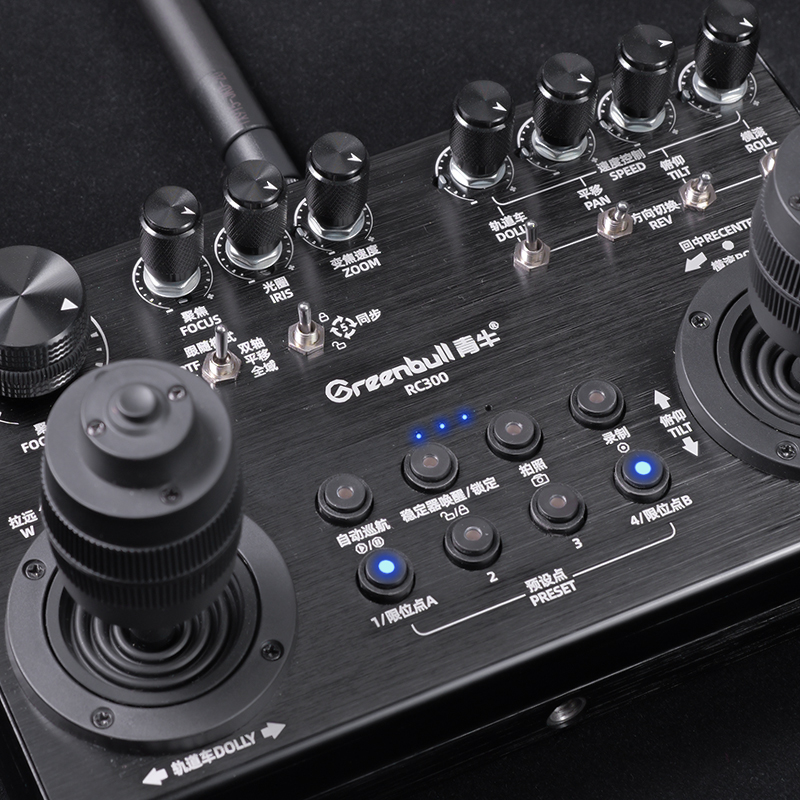

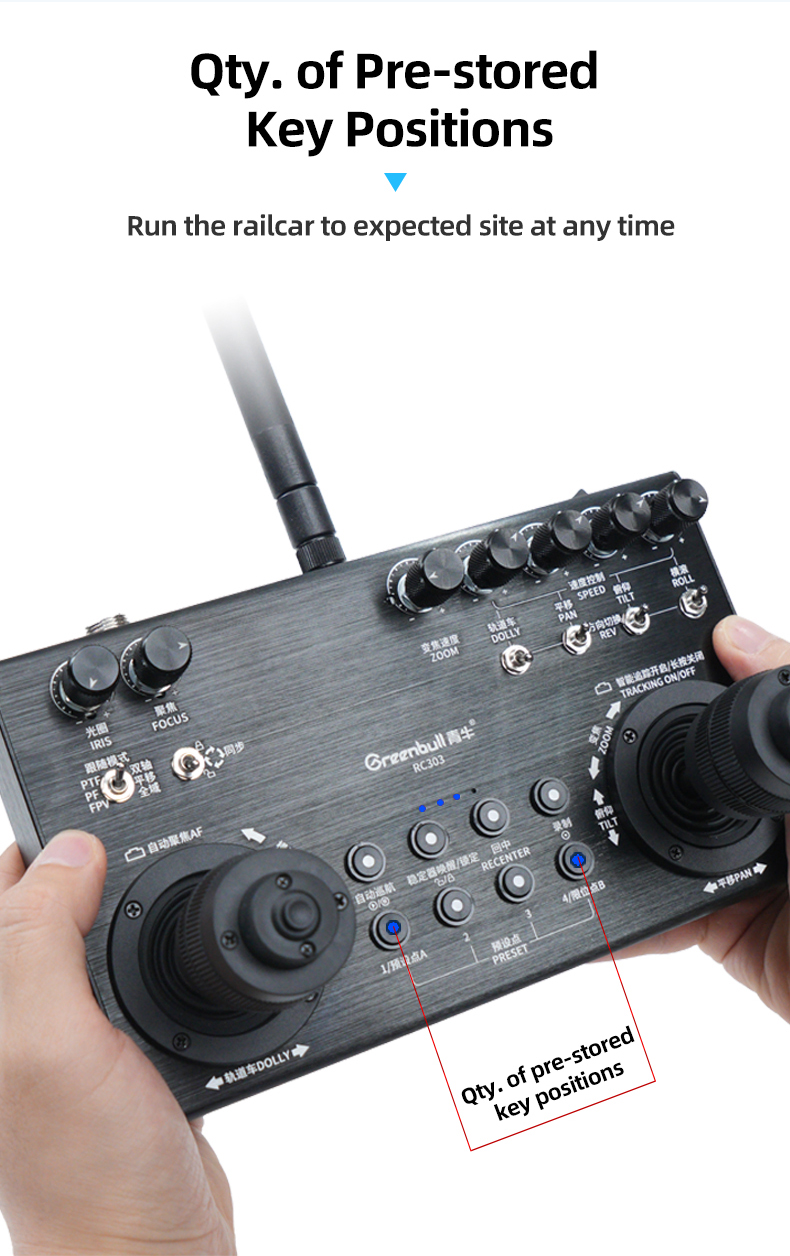

XT5 smart主图14 英文版 Qty. of pre-stored key positions

Run the railcar to anywhere you want at any time

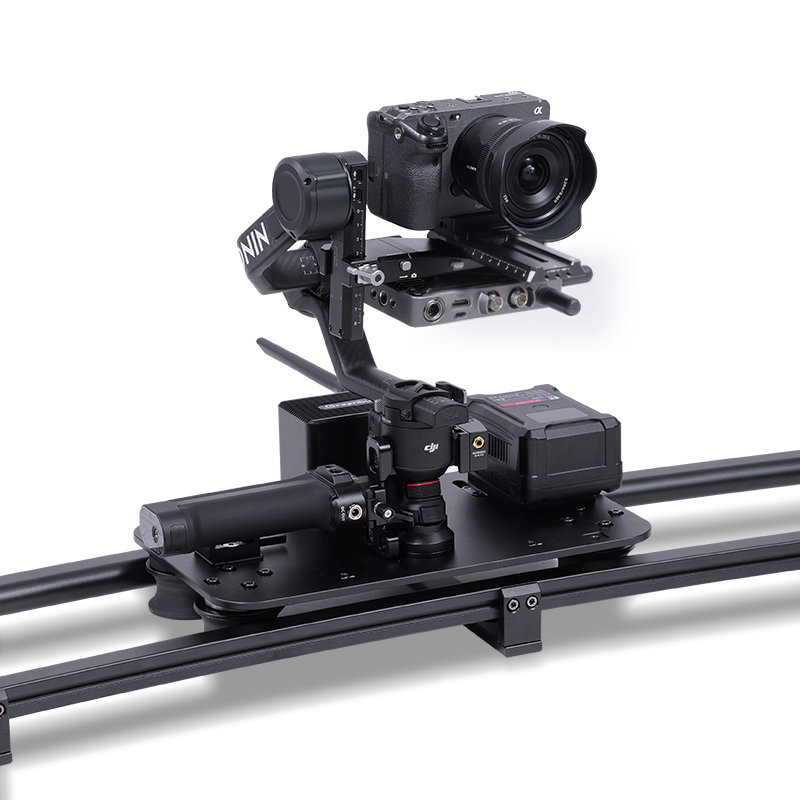

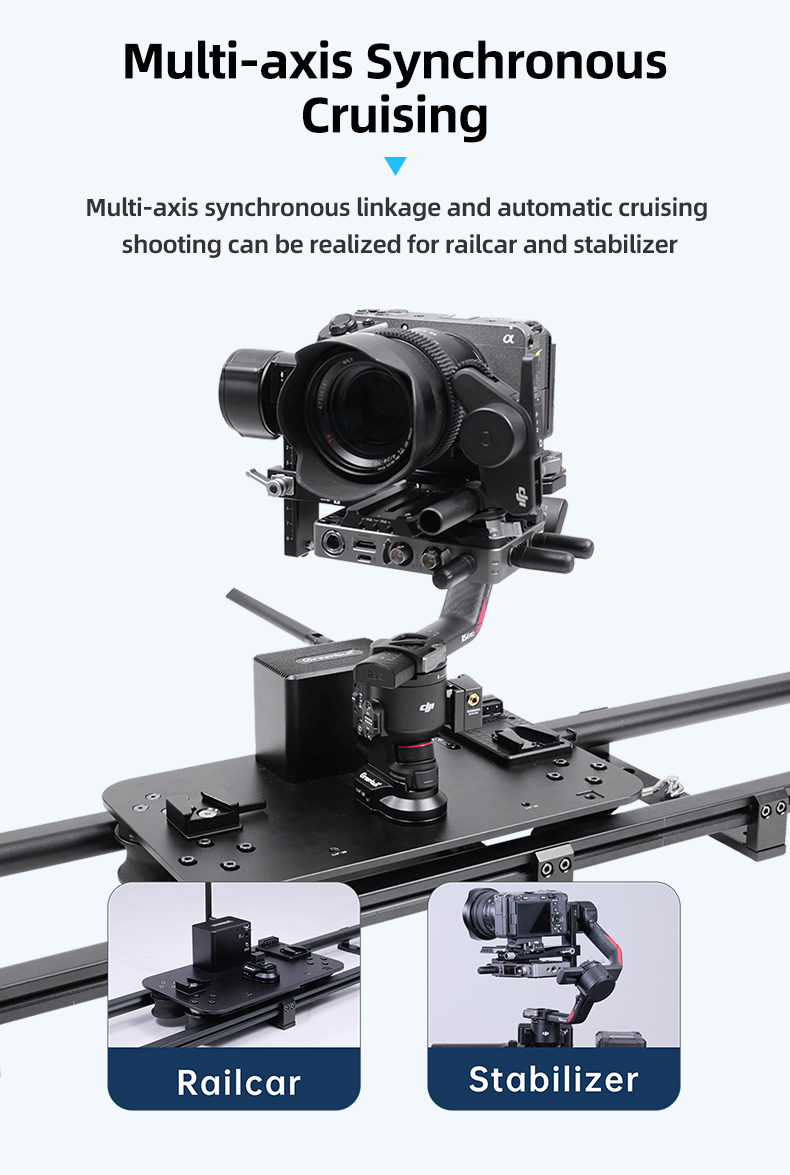

XT5 smart主图2 英文版 5-axis Synchronous Cruising

5-axis synchronous linkage of railcar, stabilizer and focus motor for 6-cruising shooting

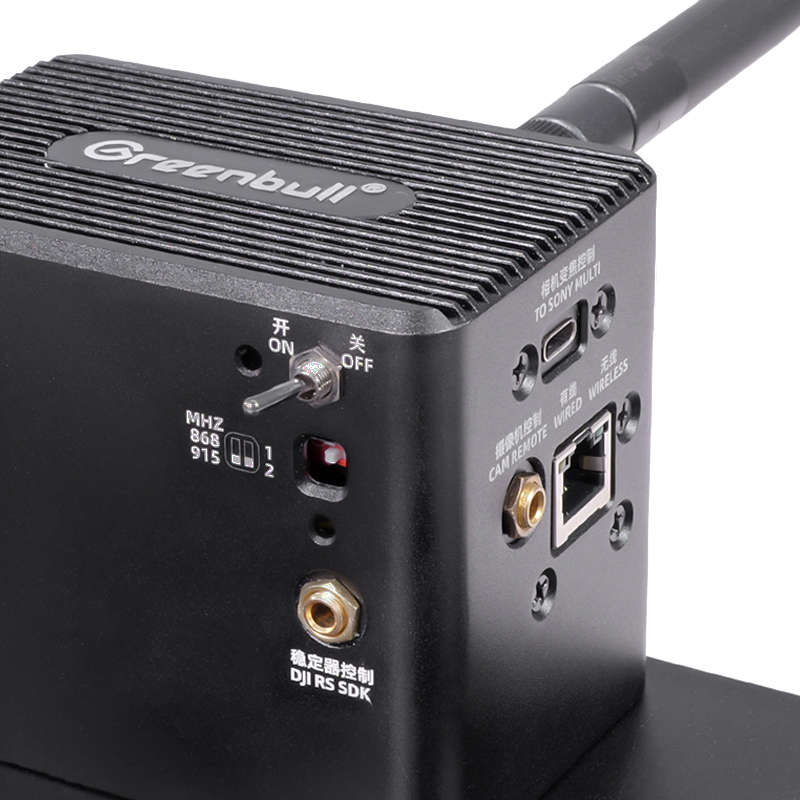

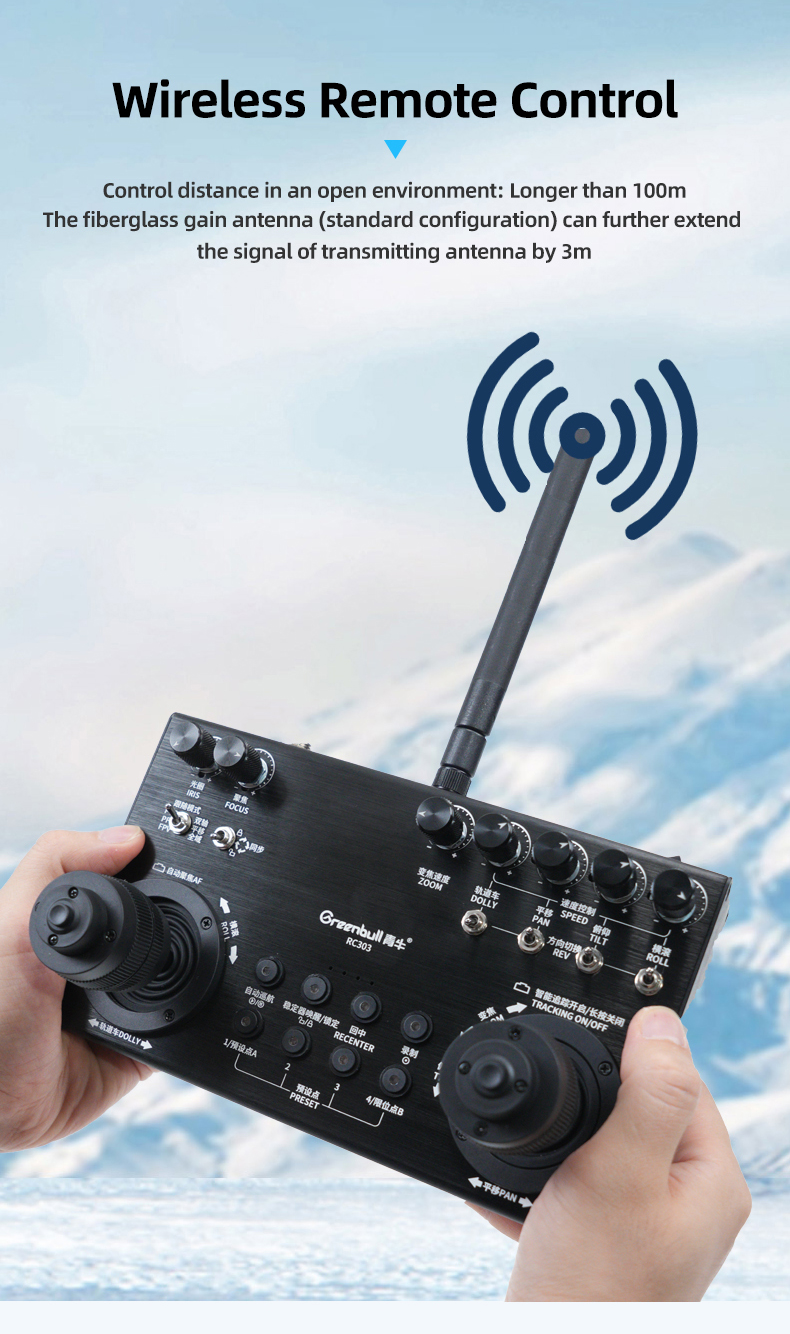

XT5 smart主图15 英文版 868 or 915MHZ

Dual-band wireless remote control: Control distance > 100 m in open environment

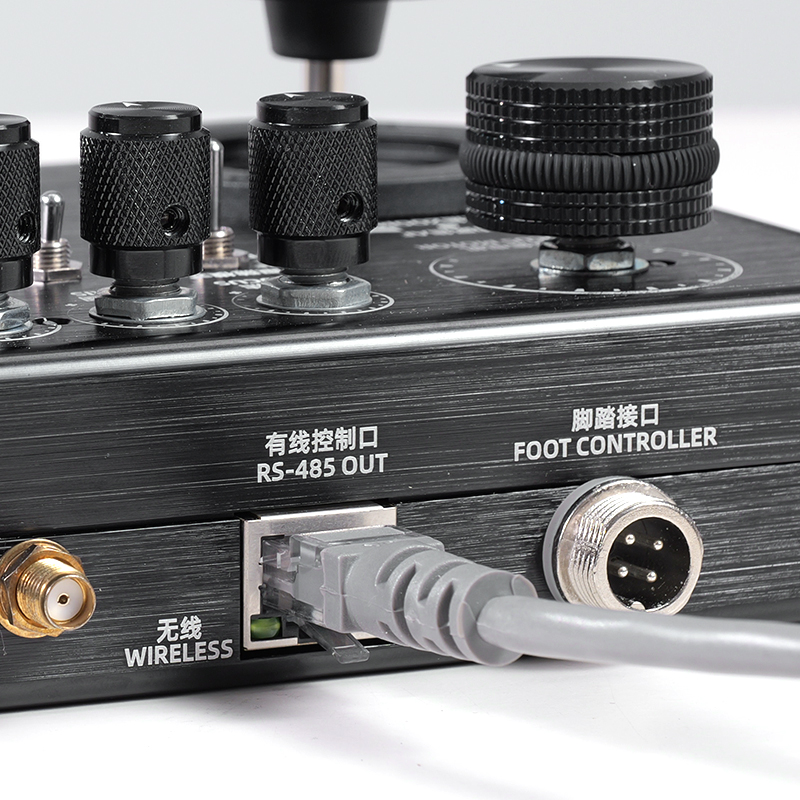

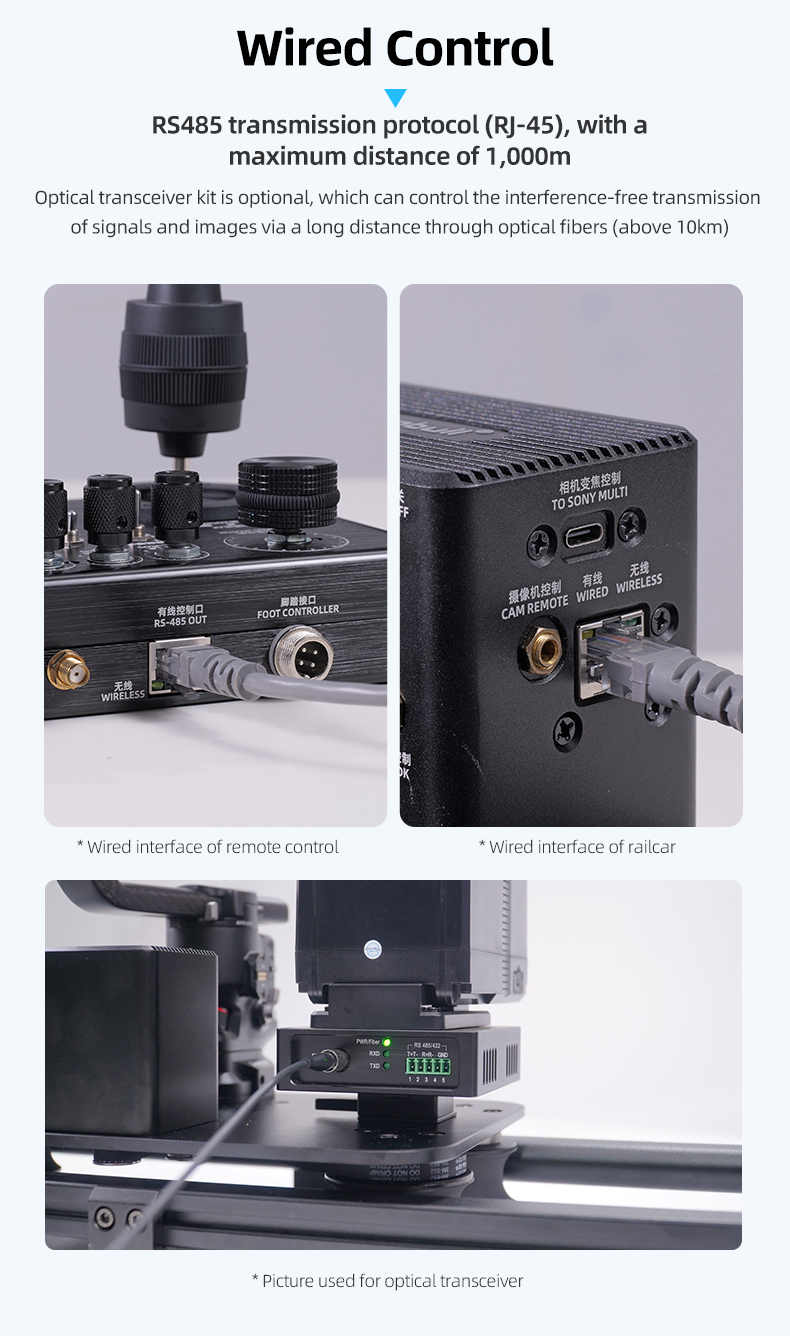

XT5 smart主图16 英文版 RS485 Wired Control

Control wire up to 1,000 m with CAT-5e or higher control lines

* Prepared by user

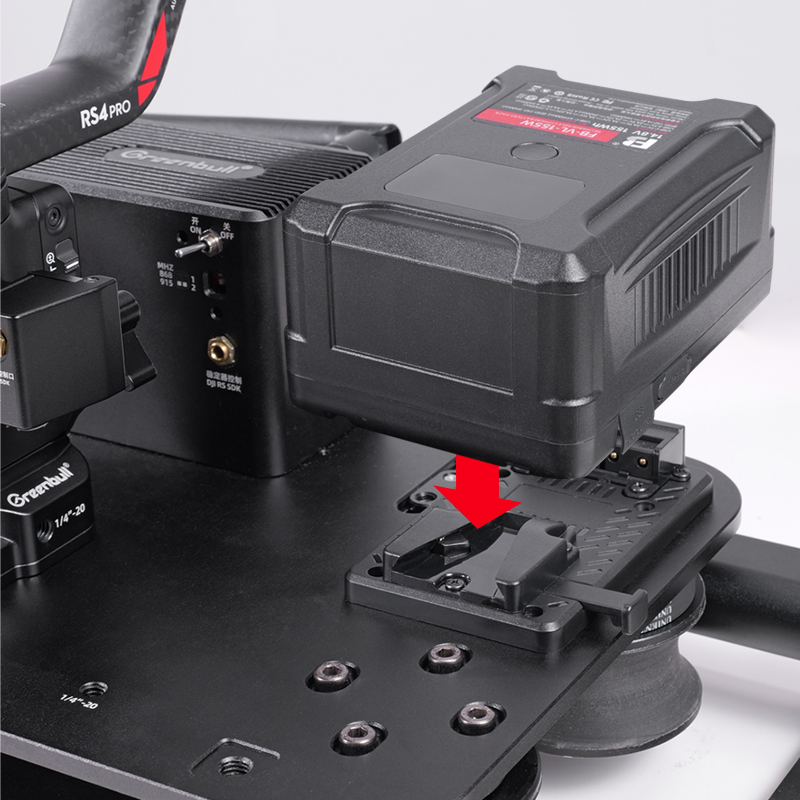

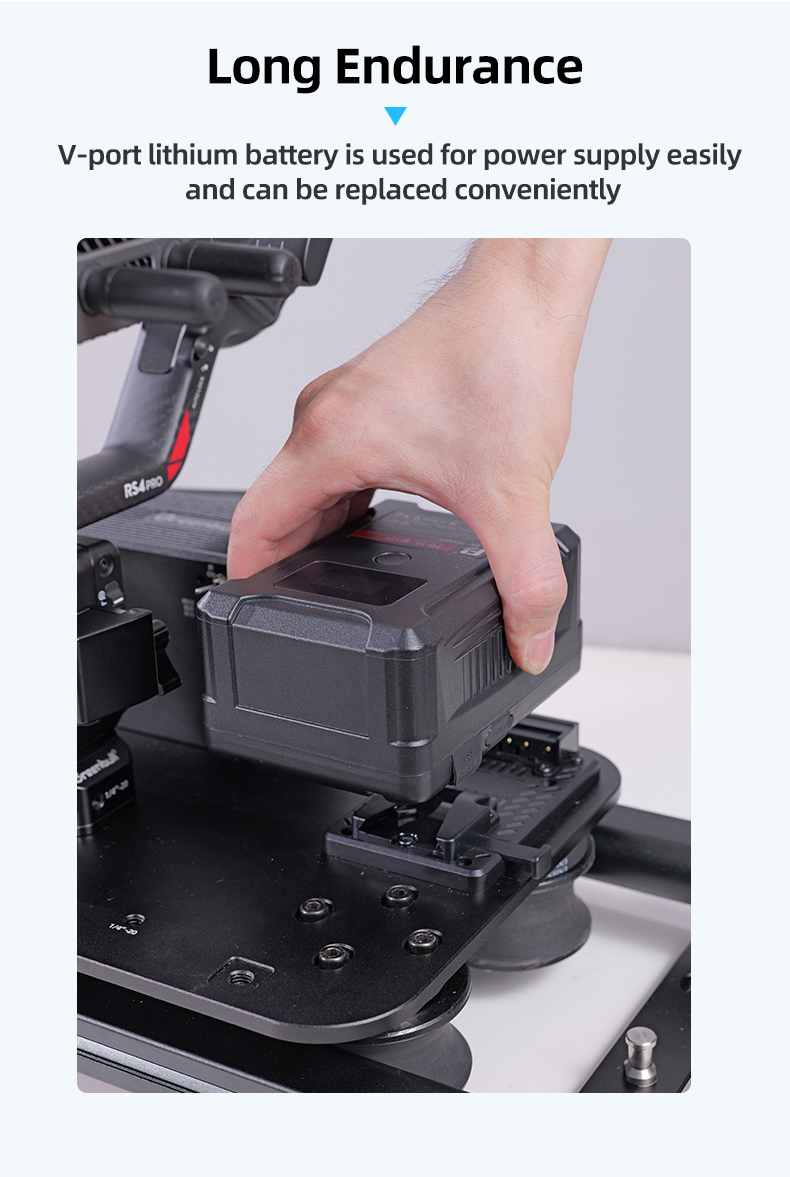

XT5 smart主图18 英文版 Long Endurance

V port lithium battery is used for power supply easily and can be replaced conveniently

XT5 smart主图19 英文版

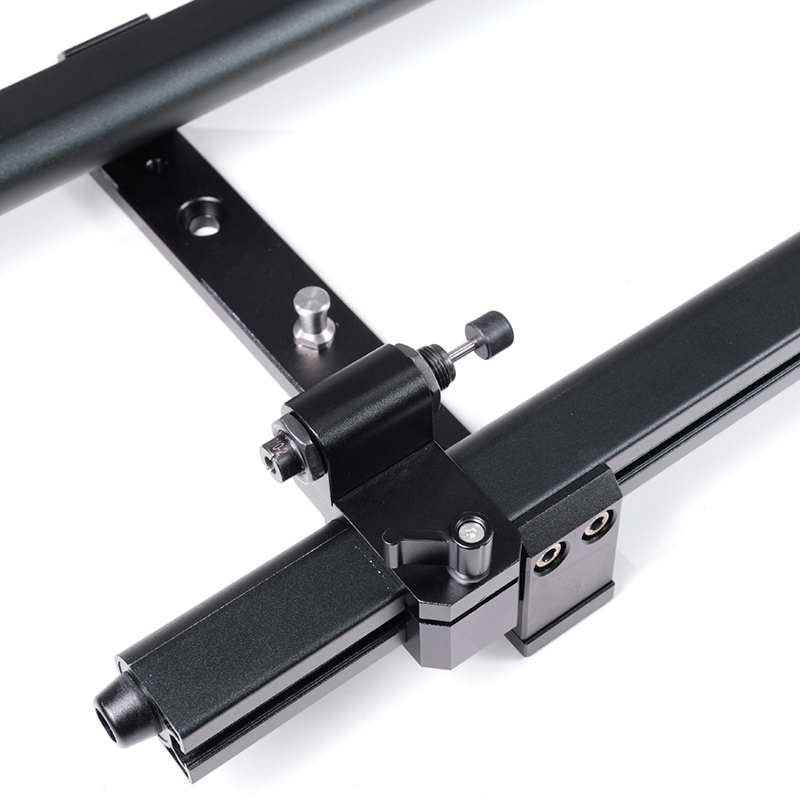

Safe Use

It comes with hydraulic spring stopper to prevent derailing of the railcar by accident

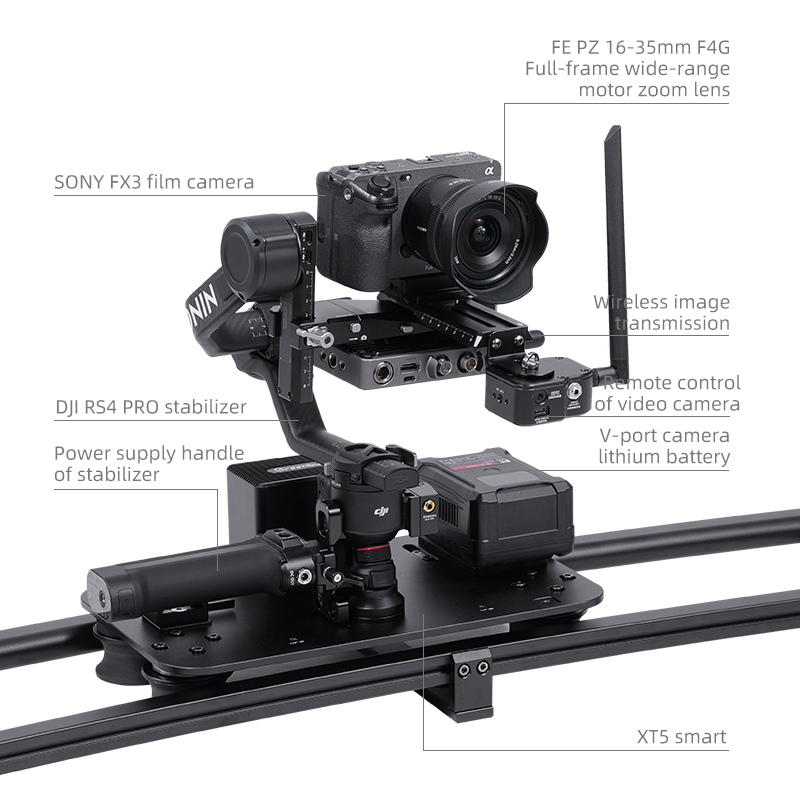

XT5 smart主图20 英文版

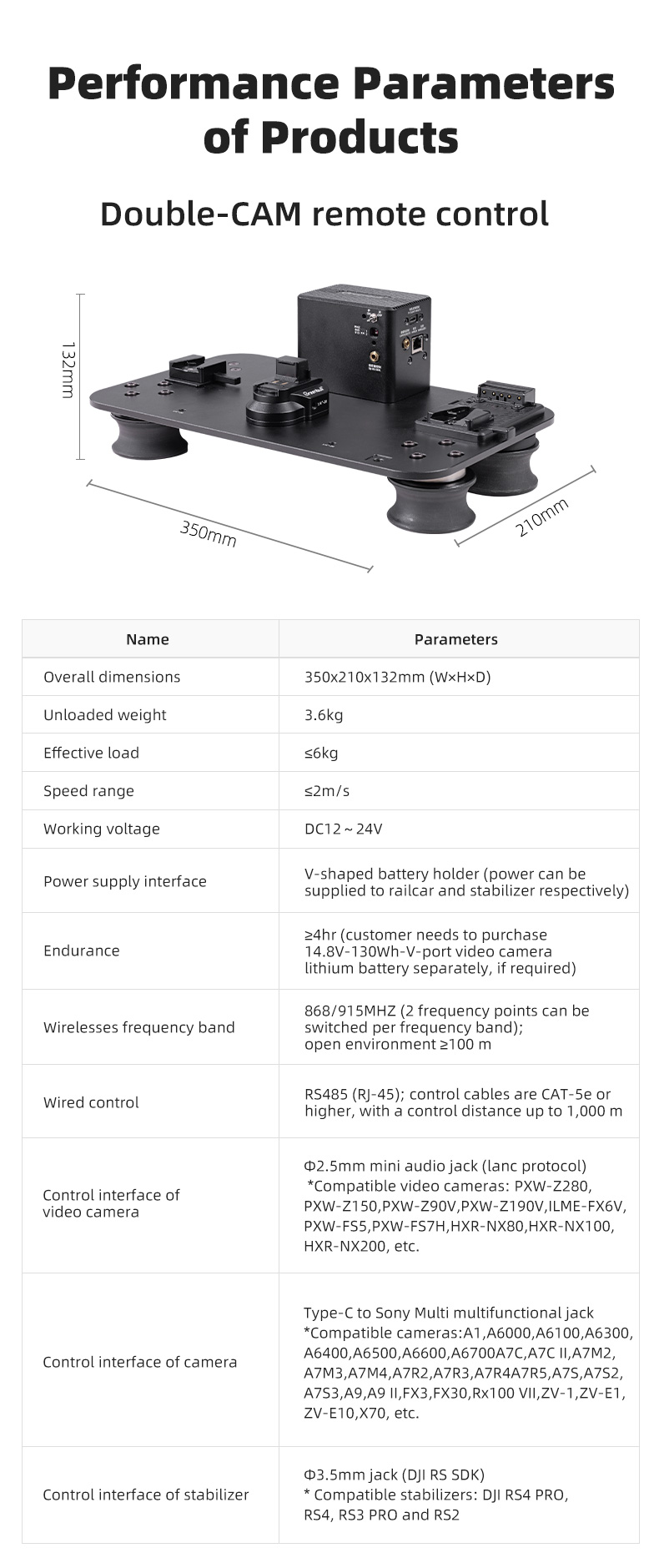

XT5 smart 详情页 英文版参数配置2024.7.18 05XT5 smart 详情页 英文版参数配置2024.7.18 06XT5 smart 详情页 英文版参数配置2024.7.18 07XT5 smart 详情页 英文版参数配置2024.7.18 08XT5 smart 详情页 英文版参数配置2024.7.18 09XT5 smart 详情页 英文版参数配置2024.7.18 10XT5 smart 详情页 英文版参数配置2024.7.18 11XT5 smart 详情页 英文版参数配置2024.7.18 12

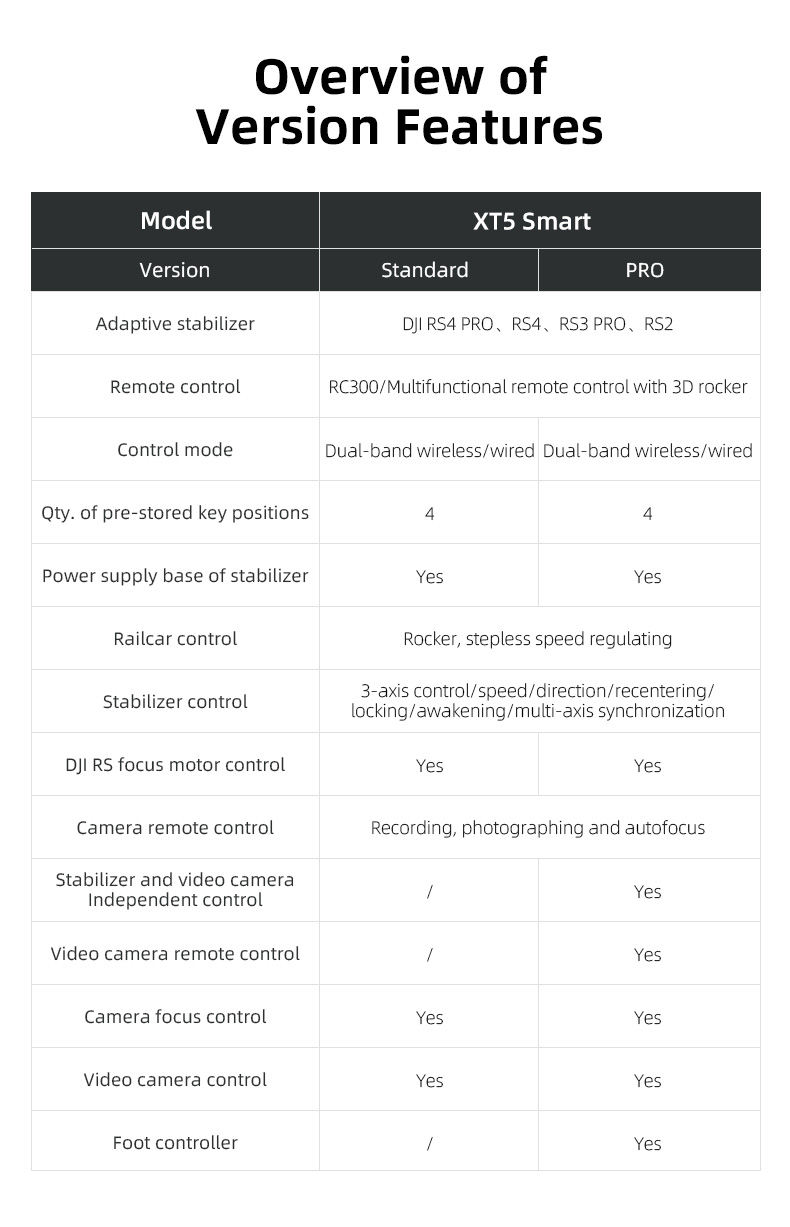

XT5 smart 详情页 英文版2024.7.18 05XT5 smart 详情页 英文版参数配置2024.7.18 13XT5 smart 详情页 英文版参数配置2024.7.18 14
