Project Description

RCP 2主图1

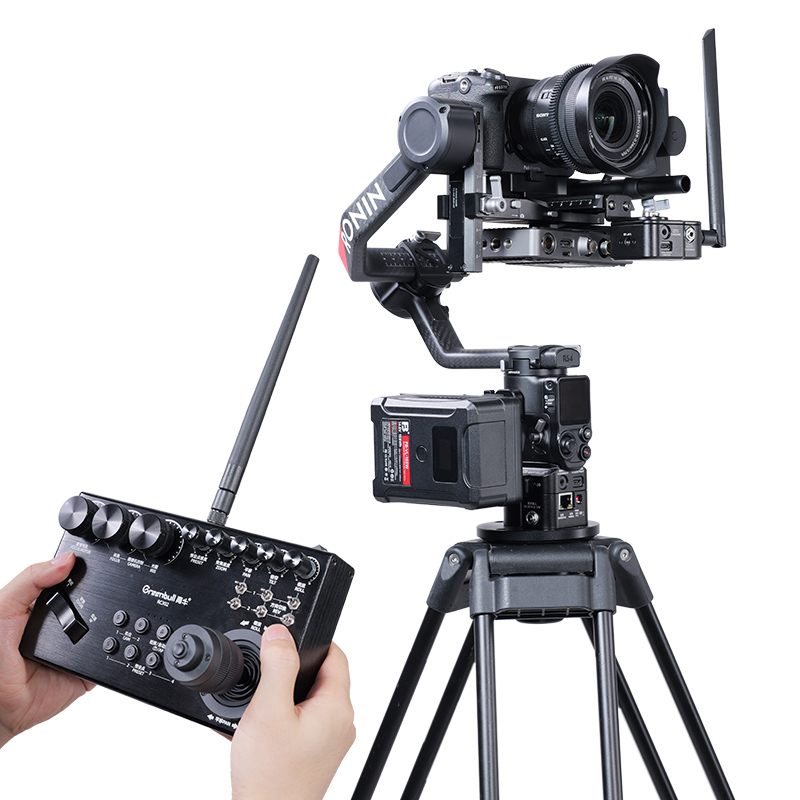

MULTI-POSITION Remote Control Camera System

RCP-2 is a multi-CAM remote control camera system, which shoots through remote control DJI stabilizer and videocamera/camera. It can pre-store 8 key positions for precise and fast switching. It can be used for shooting in such scenarios as conference scene, live streaming e-commerce, acting/art performance, sports competition, concert, musicfestival, reality show, documentaries, etc.

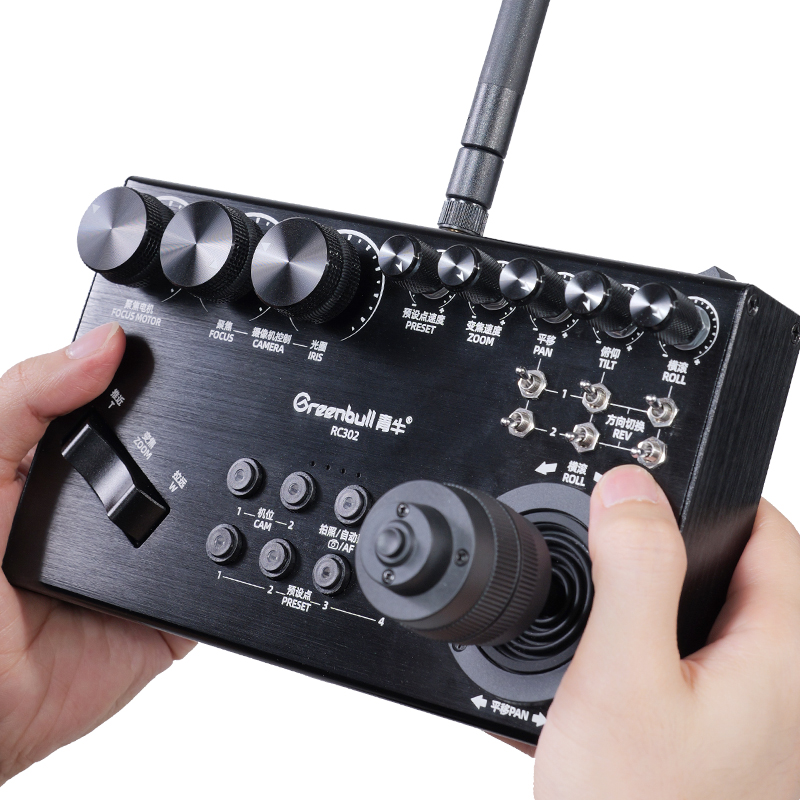

RCP 2主图4 Double-CAM Remote control

Integrated the functions of stabilizer, video camera/camera, and focal motor control.

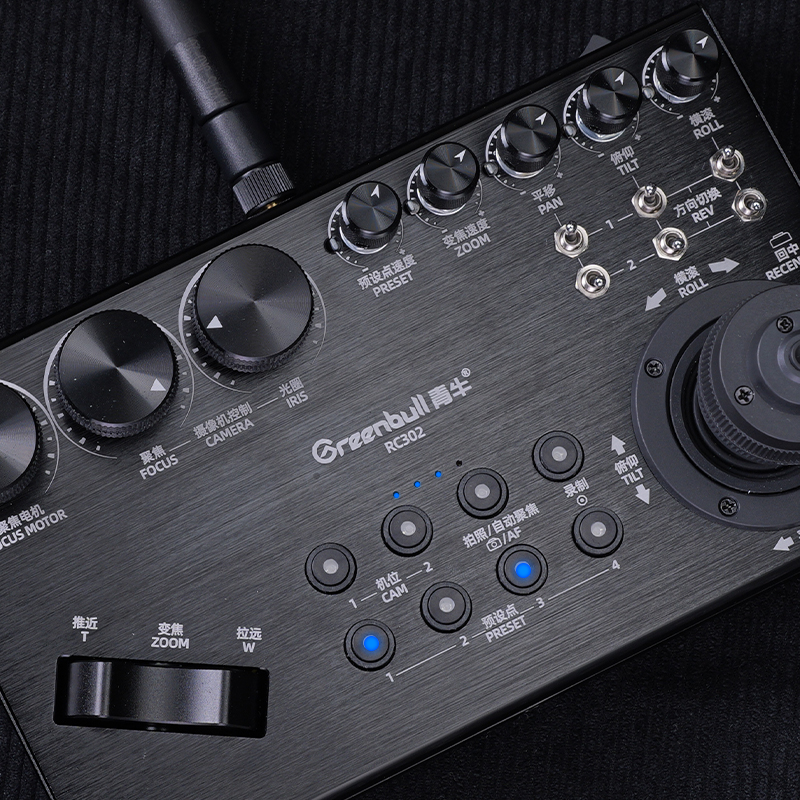

RCP 2主图5 Pre-store 8 Key Positions

Switch quickly to catch every wonderful moment.

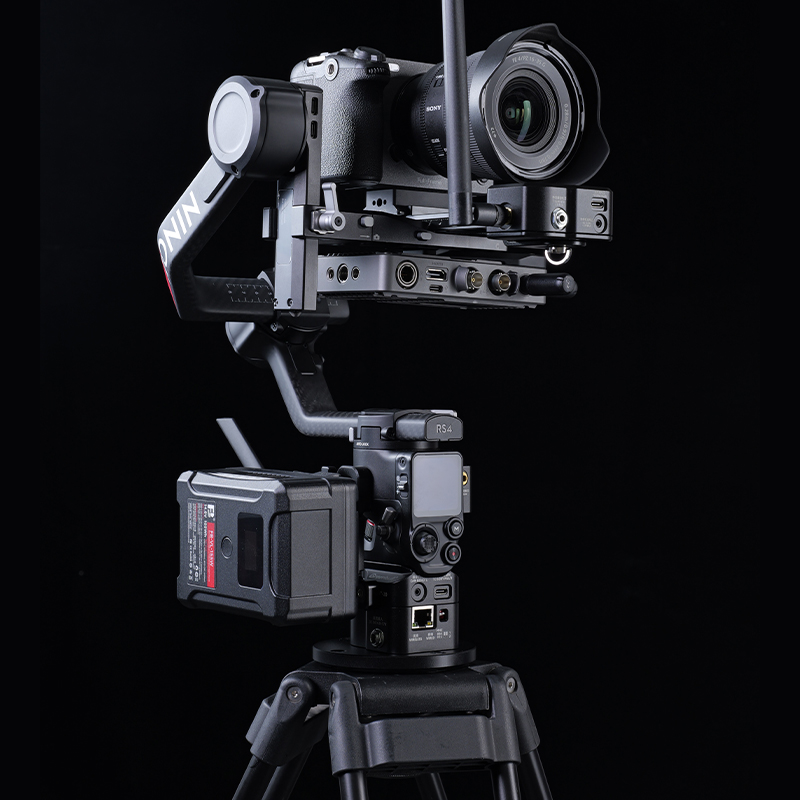

RCP 2主图6 Stabilizer Remote Control

Integrated DJI RS SDK protocol to control stabilizer rotation, tilting, rolling, and recentering

*Compatible to DJI RS4 PRO/RS4/RS3 PRO/RS2

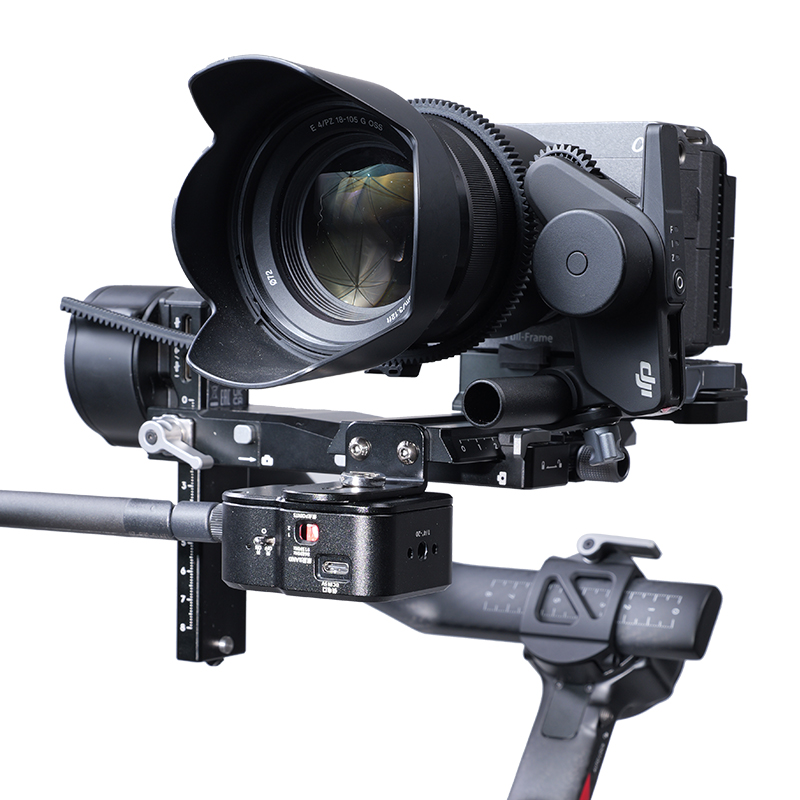

RCP 2主图12 Focus Motor Control

The spliced rail system is divided into straight rails and curved rails. The length of the rails

Compatible to DJI RS focus motor: Focus mode,Standard focus mode,Synchronous mode

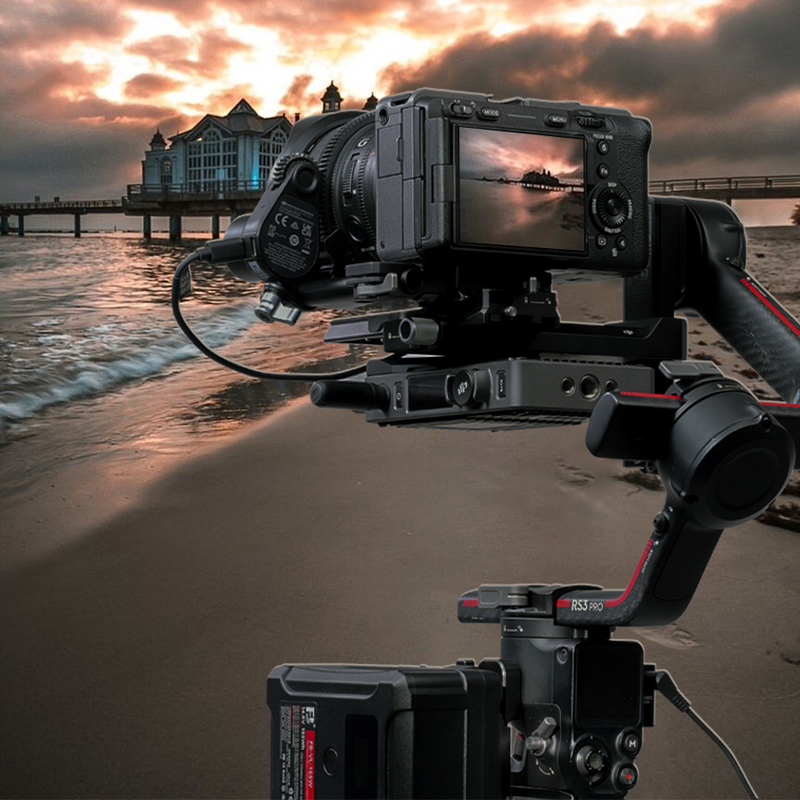

RCP 2主图7 Camera Remote Control

Recording, photographing and autofocus

*Suitable for all compatible cameras of DJI RS4 PRO/RS4/RS3 PRO/RS2; please visit DJI official website for details about models

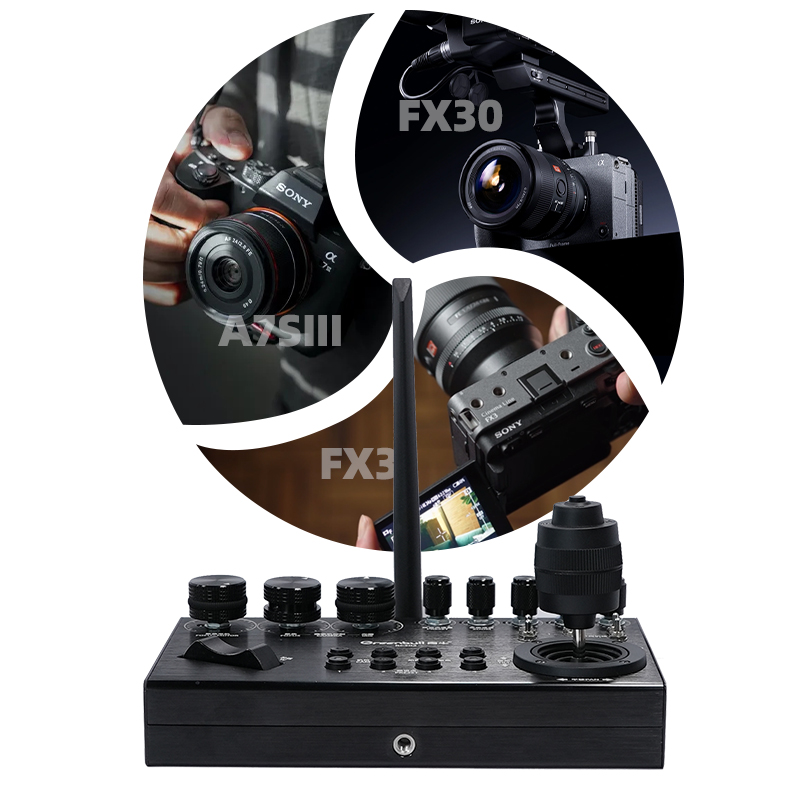

RCP 2主图8 Camera Zoom/Zoom Speed Control

Suitable for Sony A7SIII, FX3, FX30, etc.

* The zoom function of remote control works only when the above camera is used with Sony/Sony Motor Zoom Lens.

For example:

  1. FE PZ 16-35mm F4 G Full-frame wide-angle motor zoom lens (SELP1635G)
  2. E PZ 18-105mm F4 G OSS Motor zoom lens (SELP1635G)

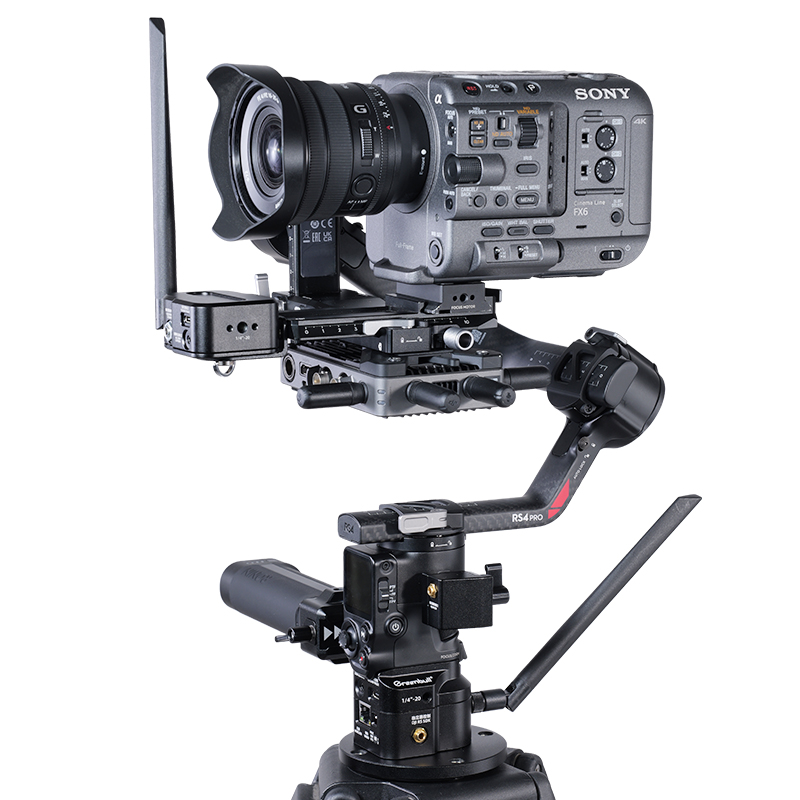

RCP 2主图9

Video Camera Remote Control

Functions including zoom/zoom speed, focus, aperture, recording, etc., such as Sony Z90, FX6, etc.

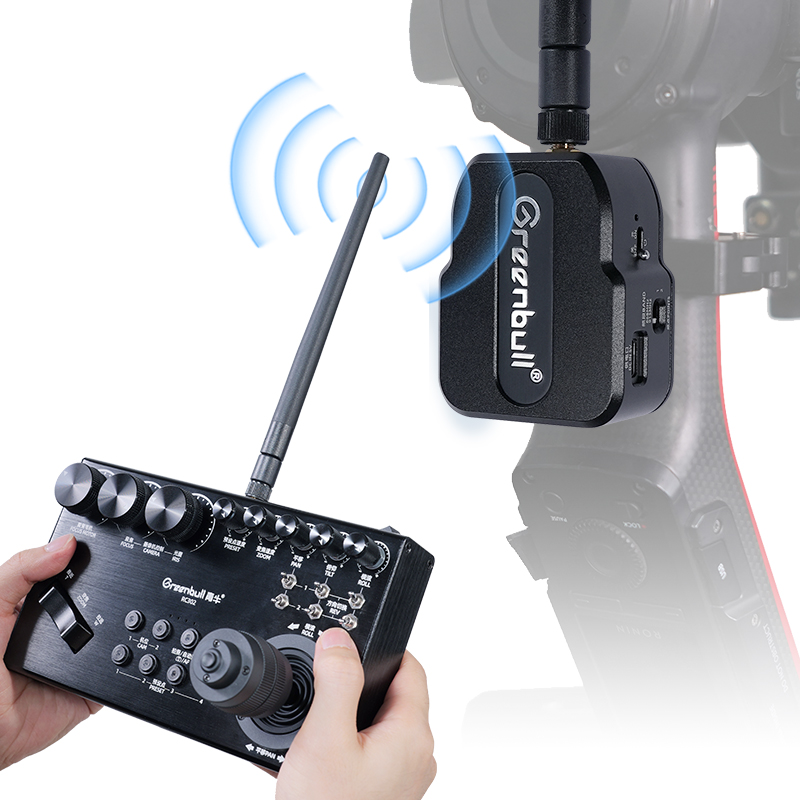

RCP 2主图3 Ronin 2 Remote Control

Camera controller is integrated with D.BUS protocol to control the rotation, tilting, rolling, recentering, etc. of DJI R2 stabilizer

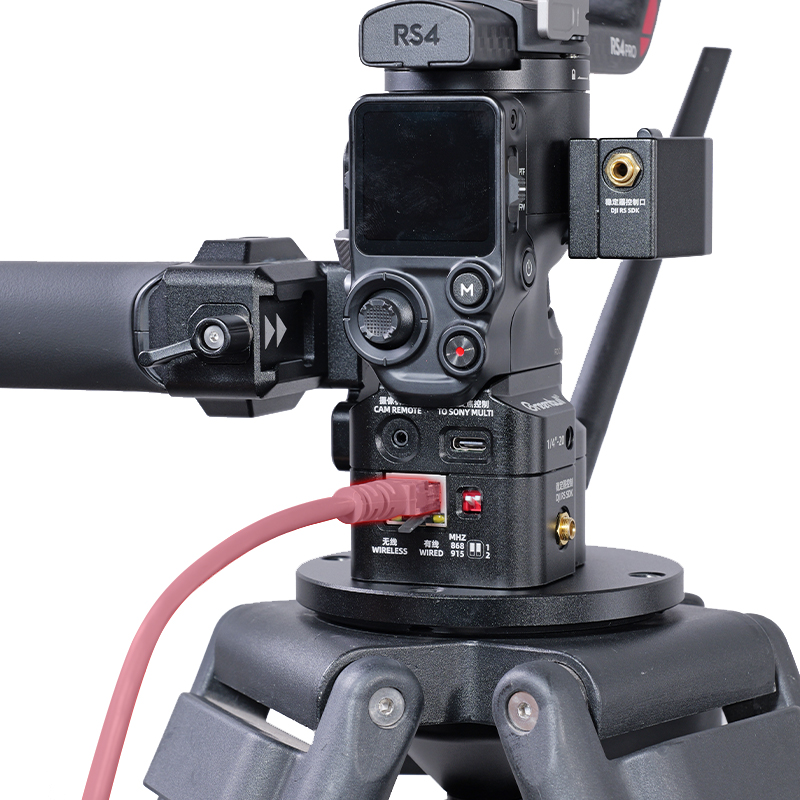

RCP 2主图10 868 or 915MHZ

Dual-band wireless remote control: Control distance> 100 m in open environment

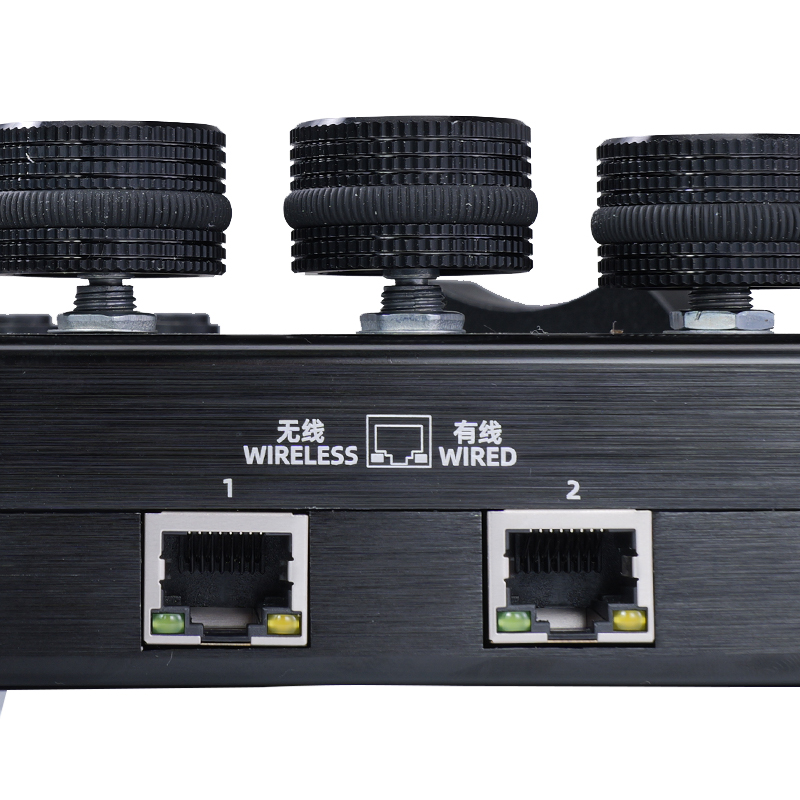

RCP 2主图13 RS485 Wired Control

Control wire up to 1,000 m with CAT-5e or higher control lines

* which needs to be prepared by the user

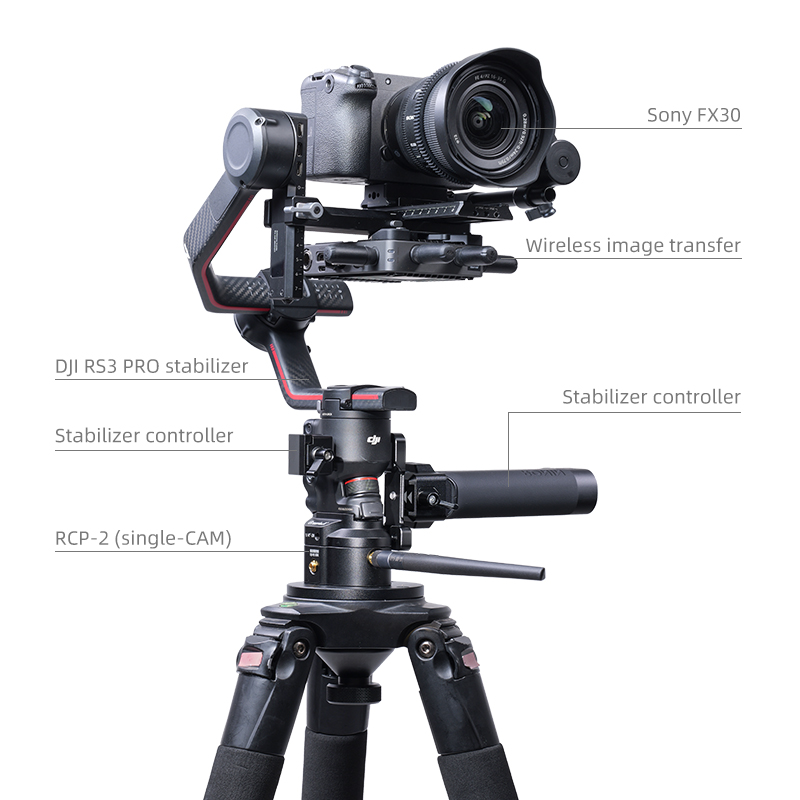

RCP 2主图14 1

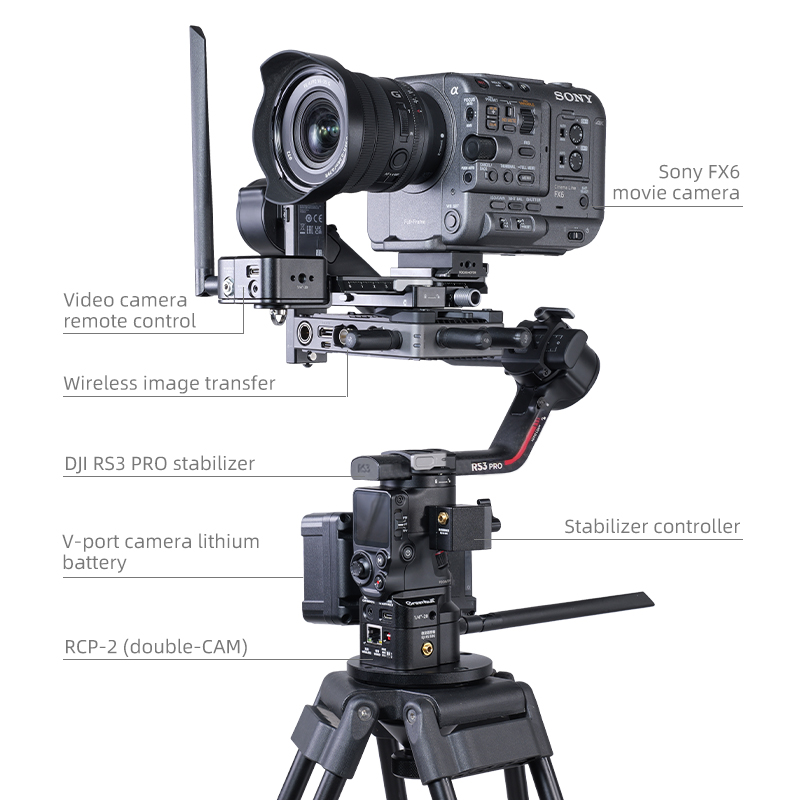

RCP 2主图15 1

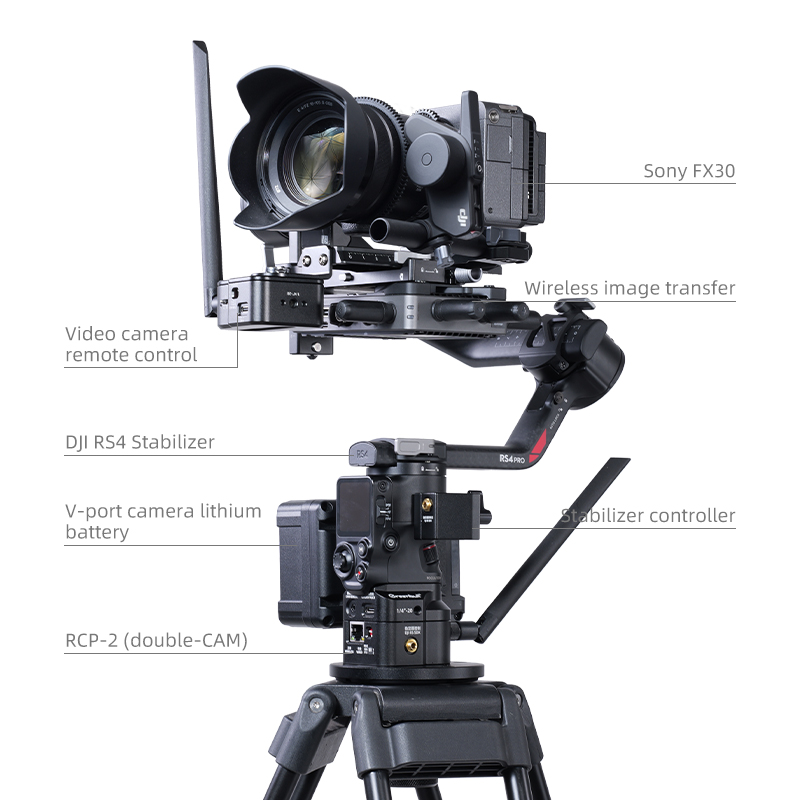

RCP 2主图16 1

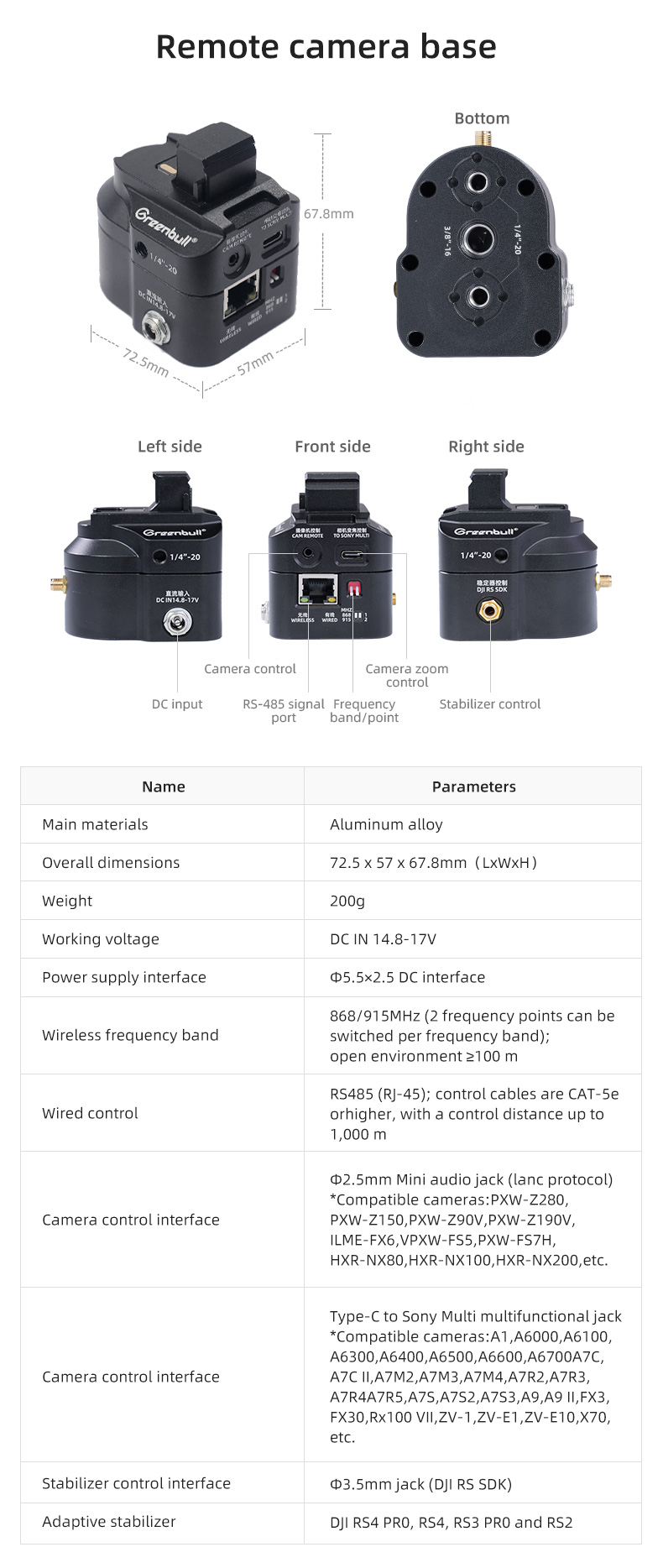

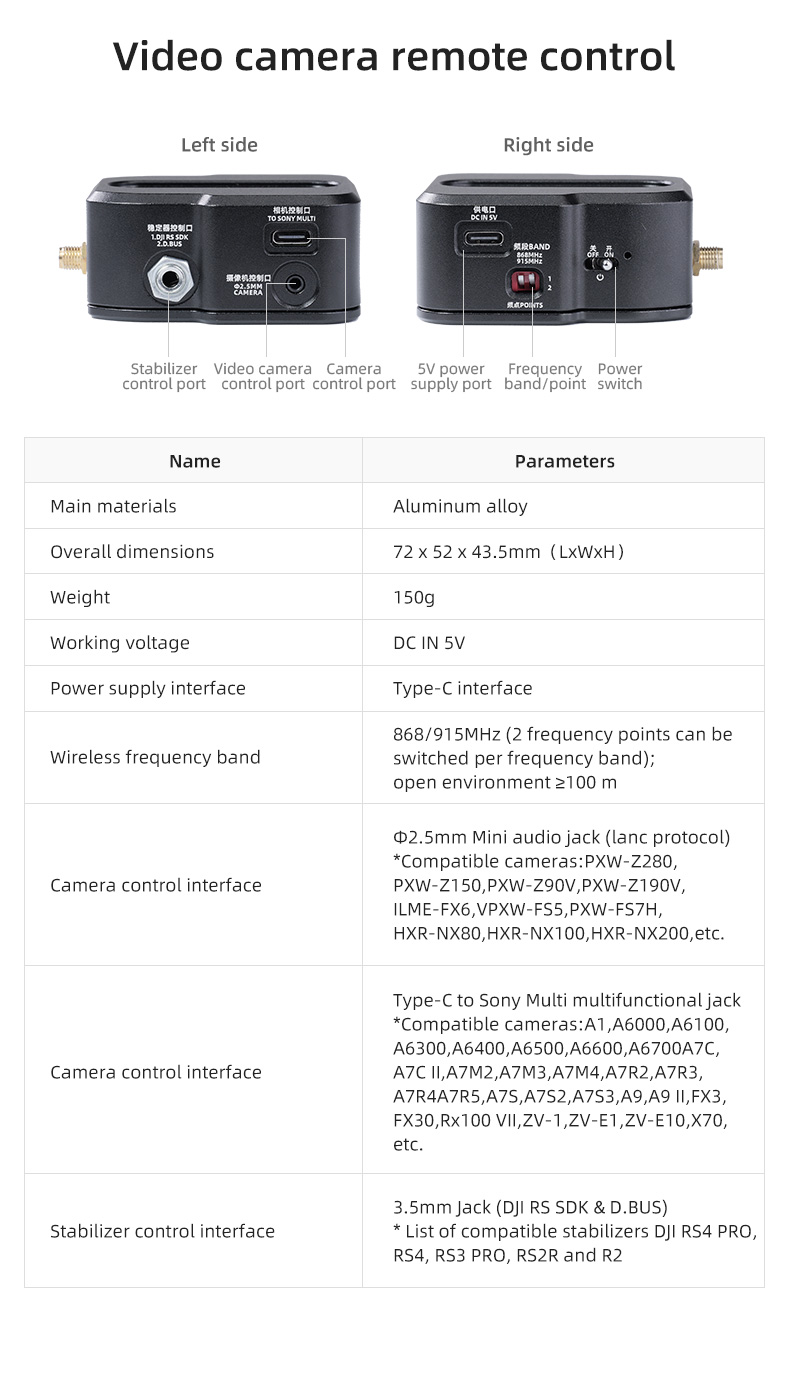

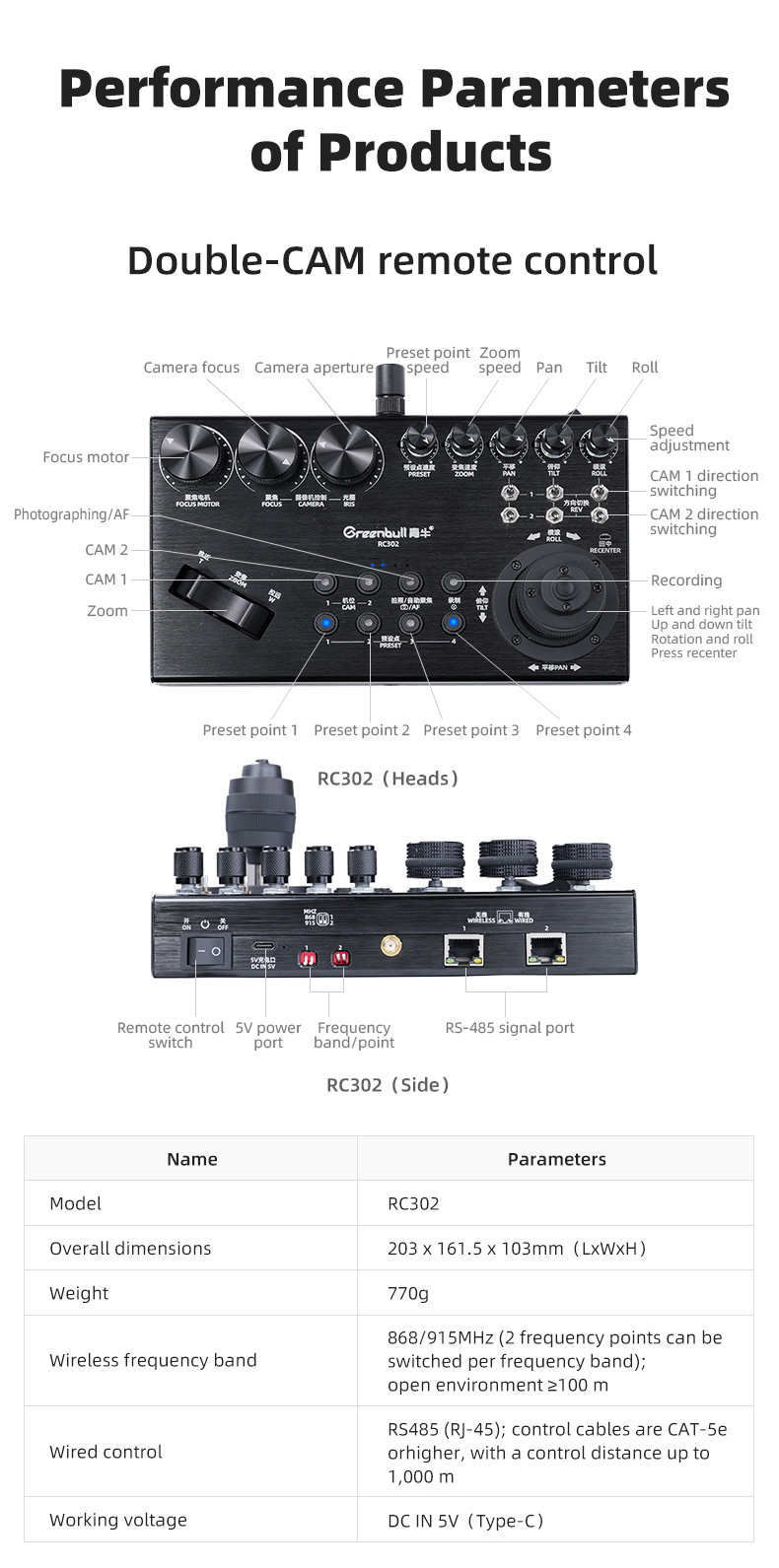

RCP 2 详情页 参数配置英文版2024.7.17 01RCP 2 详情页 参数配置英文版2024.7.17 02RCP 2 详情页 参数配置英文版2024.7.17 03

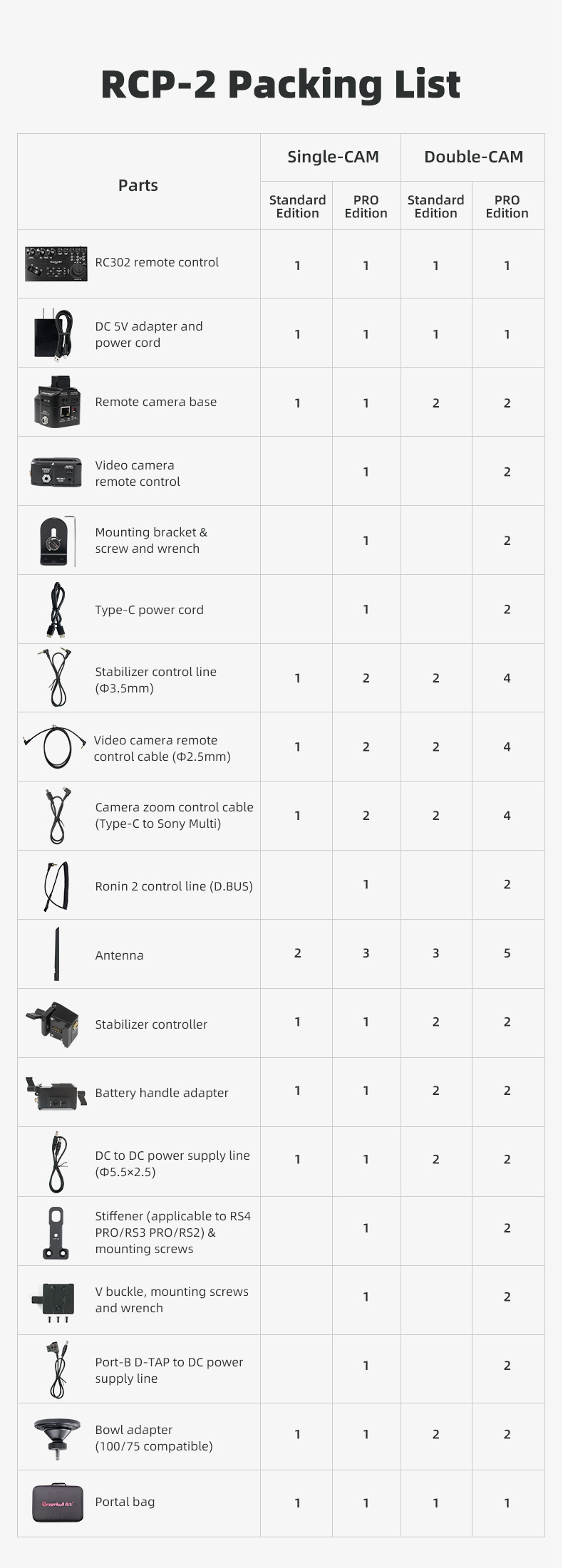

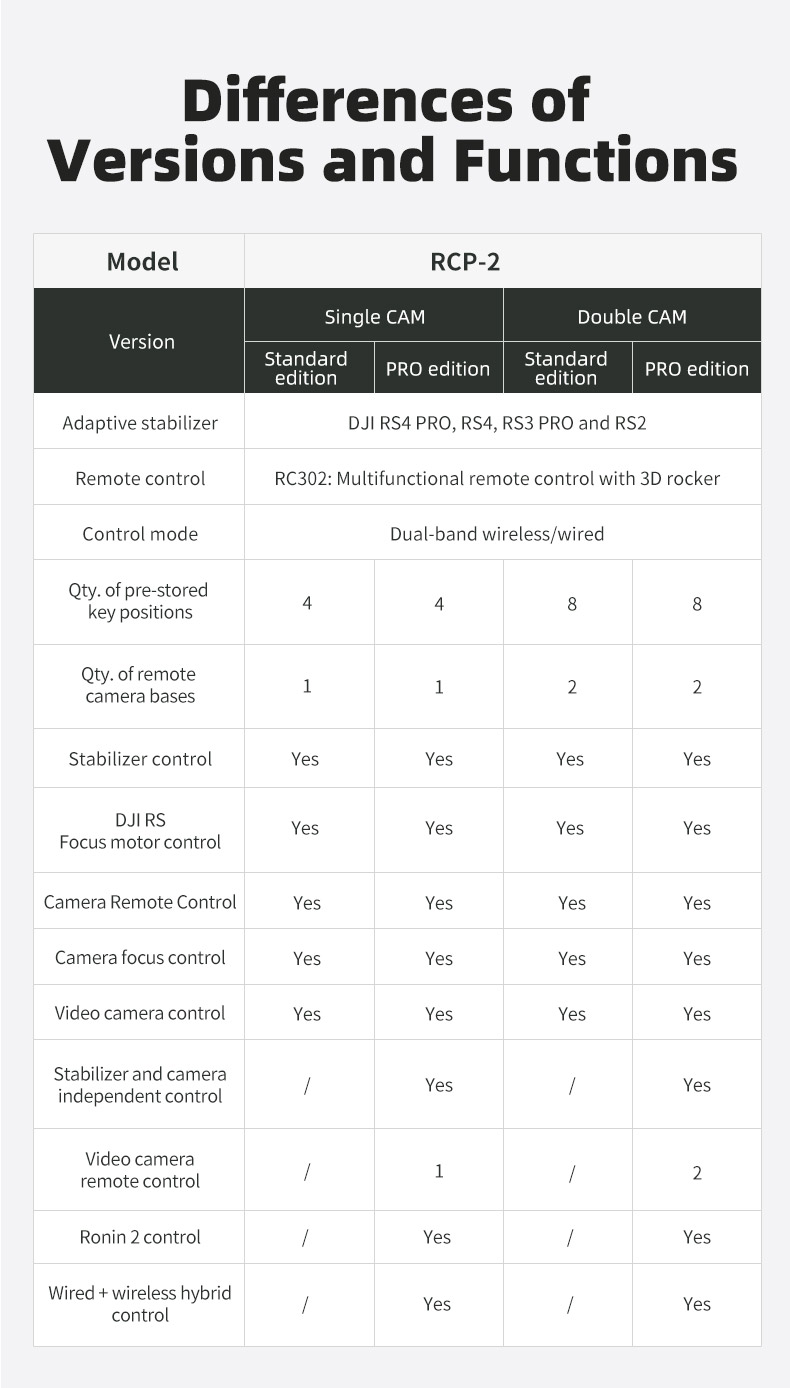

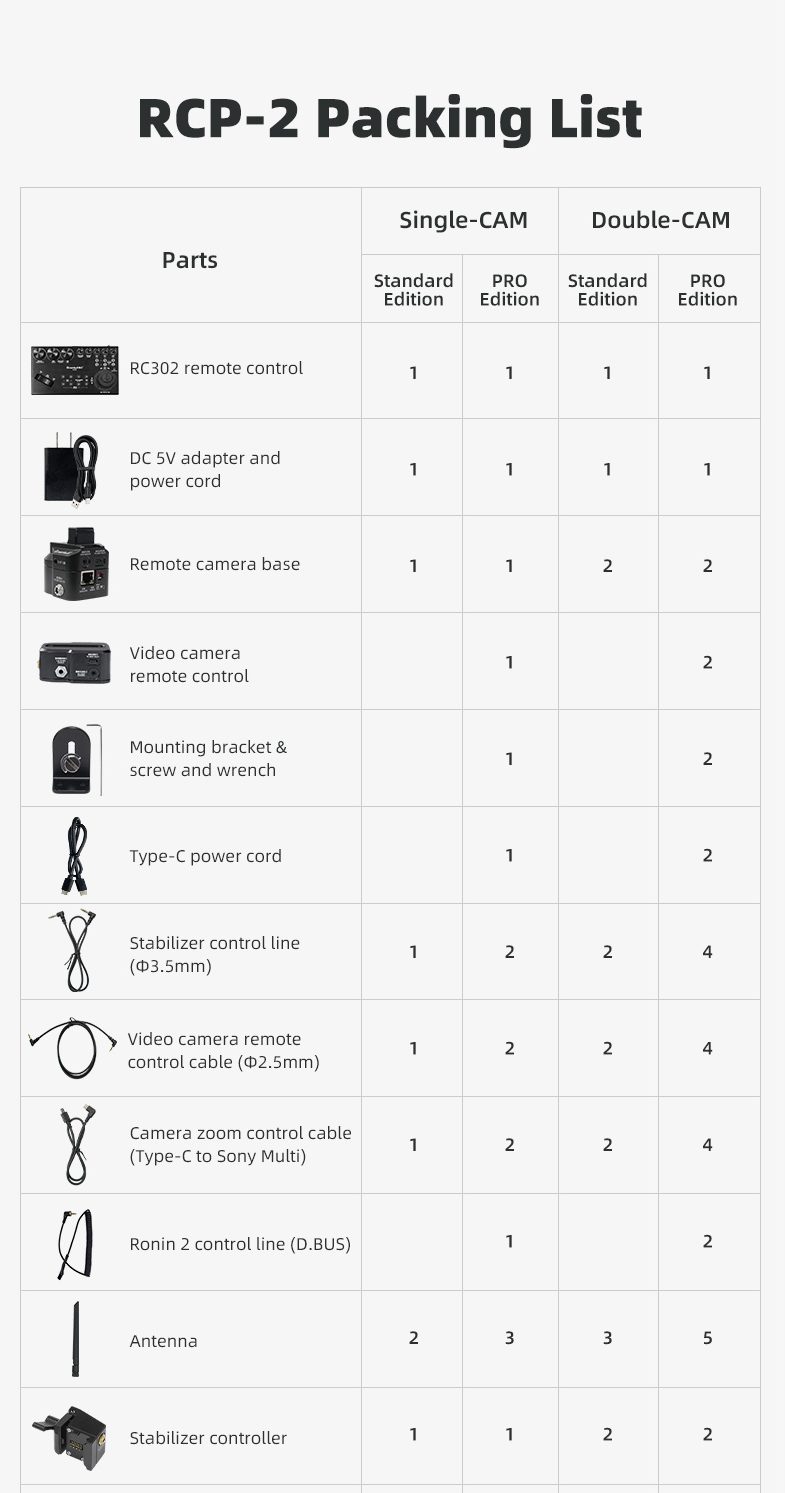

RCP 2 详情页 英文版2024.7.17 04RCP 2 详情页 参数配置英文版2024.7.17 04
