Project Description

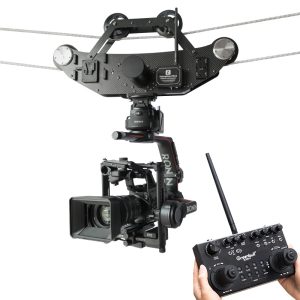

FM12 III FlyingKitty Cablecam Shooting System
FM12 III is a medium-sized cablecam device developed for DJI R2 and RS3 PRO, which payload is 12kg, integrated with DJI RS SDK protocol, and has controls for stabilizers, cameras, camcorders, aswell as focus-following, FM12 III is easy and quick to learn and operate with a range of strong functions. It is increasingly widely used in live events, performances and shows, sports competitions, concerts, music festivals, weddings and receptions, and of course, film and television dramas, documentaries and outdoor reality shows to present an overhead view of the scene.
| Dolly | |
| Dimension size: | 680x205x315mm (LxWxH) |
| N.Weight: | 6.2kg |
| Payload: | ≤12kg |
| Speed range: | ≤5 meters/second |
| Operating voltage: | DC24-36V |
| Endurance: | ≥ 6 hours (when using 2*14.8V-130Wh-V-port lithium batteries, need to be purchased separately) |
| Wireless remote control: | 868/915MHZ (each band can switch 4 frequency points); open environment ≥100 meters |
| Stabilizer control: | Φ3.5mm jack (DJI RS SDK- RS3 PRO; D.BUS-Ronin2) |
| Camera/camcorder control: | Type-C multi-function remote control jack (lanc protocol camera/Sony camera) |

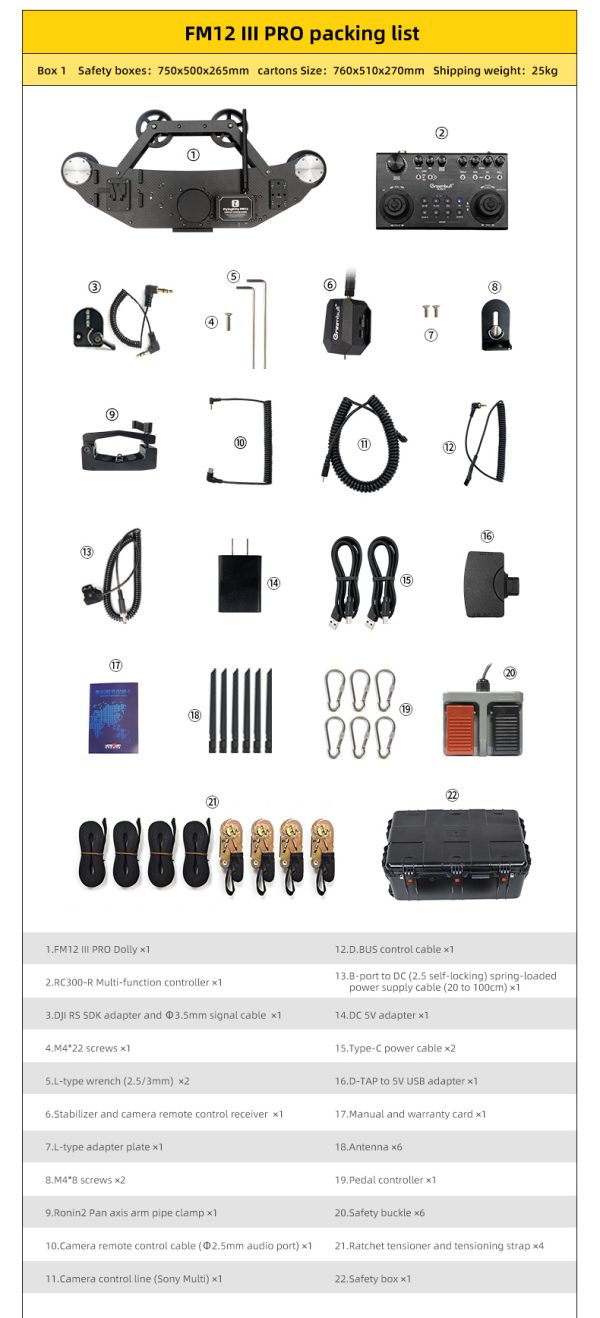

| Safety box size: | 750x500x265mm (LxWxH) |
| Carton size: | 760x510x270mm (LxWxH) |
| Shipping weight: | 25kg (including remote control, etc.) |
| Controller | |
| Model: | RC30-R (standard); RC300-R (PRO) |
| Wireless remote control: | 868/915MHZ (each band can be switched to 4 frequency points); remote control distance in the open environment ≥ 100 meters |
| Built-in battery: | 1100mAH lithium battery (battery life of about 5 hours) |
| Charging voltage: | Type-C input 5V |
| Weight: | 0.3kg (RC30-R); 0.8kg (RC300-R) |
| Stabilizer and camera remote control receiver | |
| Wireless remote control: | 868/915MHZ (each band can be switched to 4 frequency points); remote control distance in the open environment ≥ 100 meters |
| Power supply voltage: | Type-C input 5V |
| Wireless remote control: | 868/915MHZ (each band can switch 4 frequency points); open environment ≥100 meters |
| Stabilizer control: | Φ3.5mm jack (DJI RS SDK- RS3 PRO; D.BUS-Ronin2) |
| Camera/camcorder control: | Type-C multi-function remote control jack (lanc protocol camera/Sony camera) |
| Weight: | 0.1 kg |

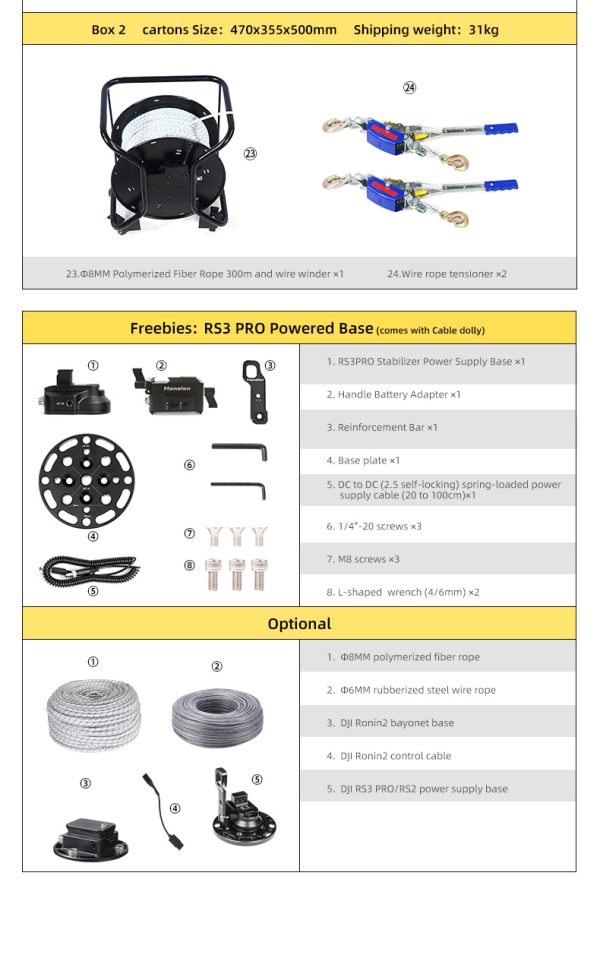

| Ropeways | |
| Material: | ultra-high polymer fiber rope |
| Specification: | Φ8mm |
| Standard length: | 200 meters (standard version); 300 meters (PRO version) |
| Suggested span: | 50~100 meters |
| Shipping size: | 470x355x500mm (LxWxH) |
| Shipping weight: | 200 meters (standard version): 25 kg (including tensioner, etc.);
300 meters (PRO version): 30.7 kg (including tensioners, etc.) |
 |

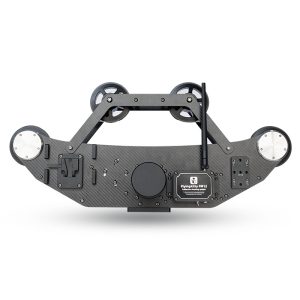

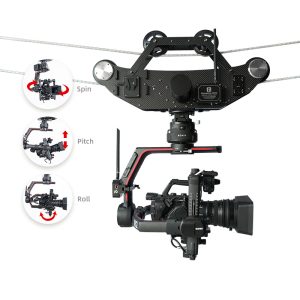

Carbon fiber cablecam dolly
4 wheels, large torque servo motor for power, precise positioning, quiet and smooth, stepless speed regulation, climbing power and hovering ability, payload up to 12 kg. |
 |

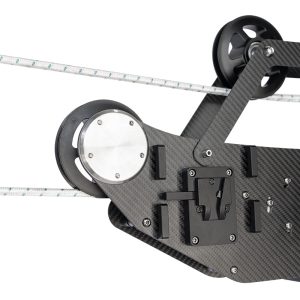

Double cables
enhanced safety and stability |
 |

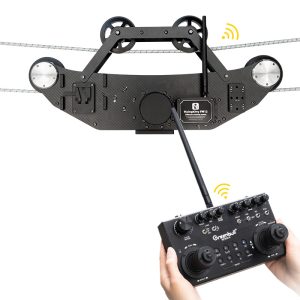

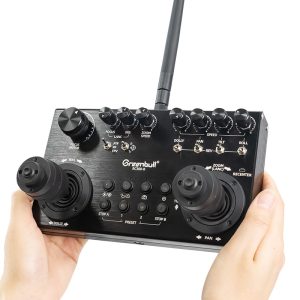

Multifunctional remote control
Equipped with a new electronic control system,capable of controlling the dolly, stabilizer, video camera/camera, and follow focus motor. |
 |

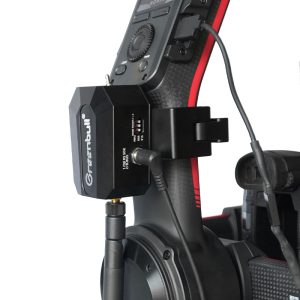

Dual Remote Control System
In addition to the stabilizer and camera control interface on the dolly, can also choose an independentstabilizer and camera remote control receiver for more flexible control. |
 |

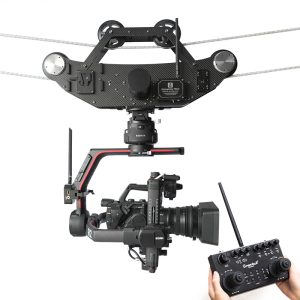

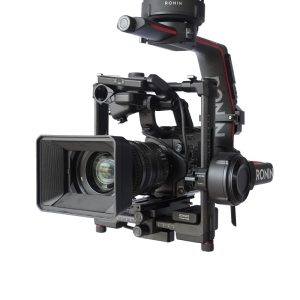

Capable of Controlling DJI R2
compatible with the D.BUS protocol, capable of controlling the panning, tilting, rolling, neutral of DJI R2stabilizer. |
 |

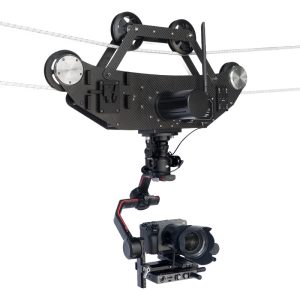

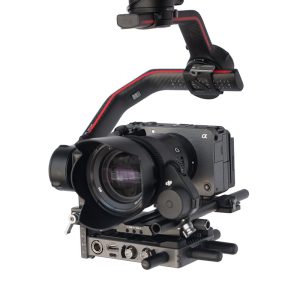

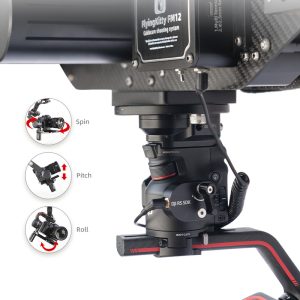

RS3 PRO Remote Control
integrated with DJI RS SDK protocol to control DJI RS3 PRO rotation, tilt, roll, motor lock, return, etc. functions, as well as DJI RS follow focus motors. *Compatible with DJI RS2 stabilizer. |
|
|
DJI RS3 PRO remote control
deeply compatible with DJI RS SDK protocol, stabilizer rotation, tilt, roll, motor lock, back to the center and DJI RS follow focusmotor control functions, compatible with DJI RS2 stabilizer. |
 |
Video camera remote control
capable of controlling the zoom, focus, iris, recording and other functions of video cameras, such as Sony Z90/FX6 and other models. |
 |
Camera Remote Control
The electronic control system also enables control of micro-single cameras for Sony cameras with multi-purposeports, such as the A7SIII, FX3, FX30, etc. It can control the camera zoom*, recording, picture taking, auto-focusing, and so on; |
 |

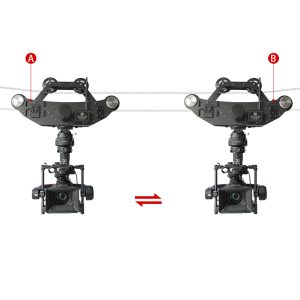

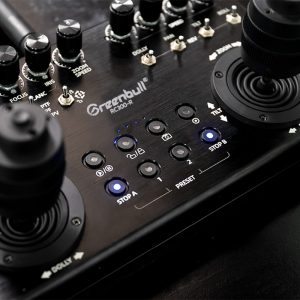

Virtual A/B safety points
setting virtual starting and stopping points (A/B safety points) for the dolly to operate within a safe range. |
 |
Preset key points
for the pro version, 4 key points can be preset, running the dolly to the desired positions at any time as needed. |
 |
Multi-axis synchronous cruise
achieving five-axis synchronous operation and cruise shooting, with the dolly, stabilizer, follow focus motor and other devices all working simultaneously. *Taking the dolly speed as the reference value, when the dolly speed has a large difference with the motor speed of the stabilizer or focus follower, it will be out of the permissible range of synchronous linkage. |
 |

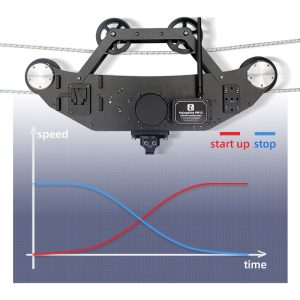

Gentle starts and stops
corresponding damping buffer ensuring gentle and smooth starts and stops. |
 |
Dual-frequency wireless remote control
Via 868 or 915 MHZ, control distance ≤100 meters in an open environment. In addition, each frequency band can also be switched to 4 frequency points, allowing the use of multiple devices in the same scene. |
 |

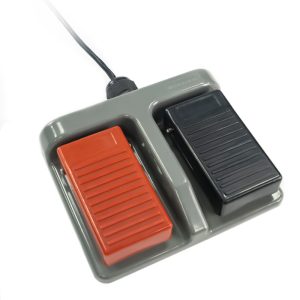

Pedal control
FM12 III pro users can control the dolly with the pedals. |
 |

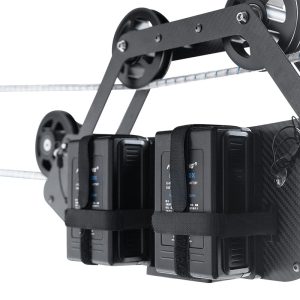

Durable endurance
V-port lithium battery power supply, easy to use and replace, to meet the needs of long-time work. * V-port lithium batteries need to be provided by the user or purchased separately. |
|
|

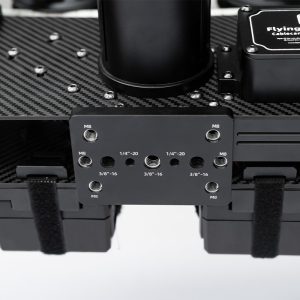

Favorable Expansibility

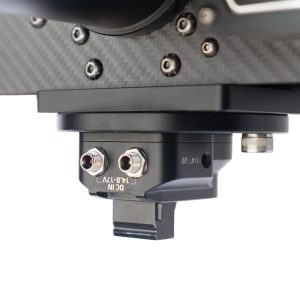

On the bottom of the Dolly is a universal mounting platform that allows you to mount other customized adapters in addition to the R2 adapter and RS3PRO powered base to carry more devices. |
 |

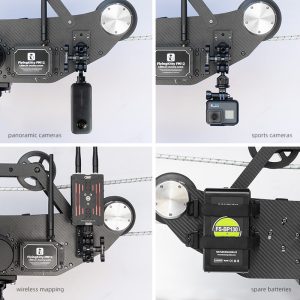

The multifunctional expansion panel on the side can also carry various devices such as panoramic cameras, sports cameras, wireless mapping, spare batteries, etc. |
