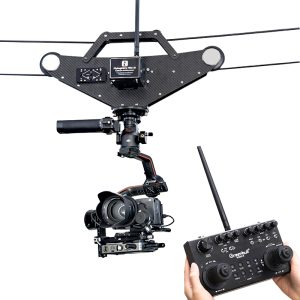

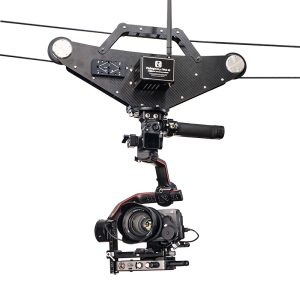

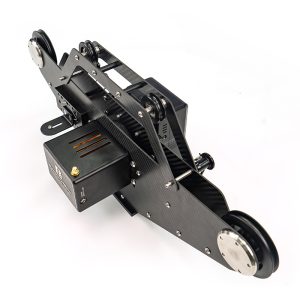

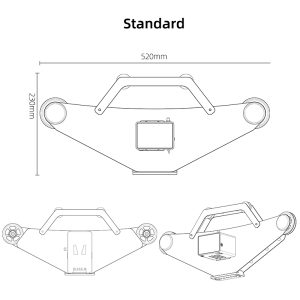

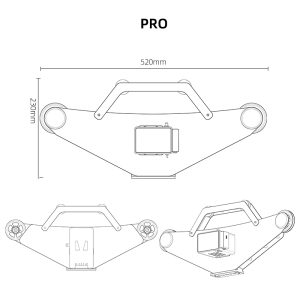

The dolly is made of carbon fiber with 4 wheels. It is driven by a large torque servomotor with accurate positioning, silent and smooth operation and stepless speed adjustment. The dolly also boasts climbing and hovering ability, and a payload up to 6kg.

The design of a main cable and a safety cable can not only enhance the safety of the dolly, but also increase the stability.

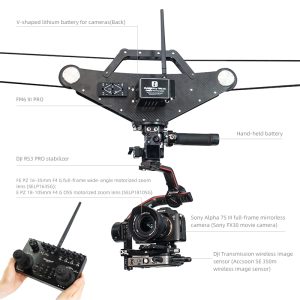

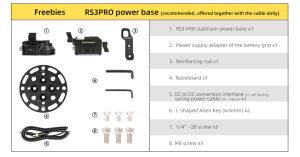

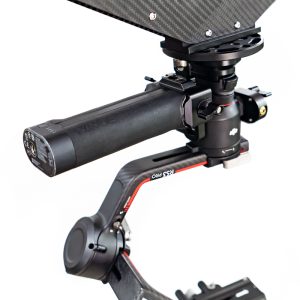

It is equipped with the DJI RS3 PRO stabilizer power base, which is compatible with the DJI RS2. With the battery grip adapter, the base can be powered by the battery grip that comes with the DJI RS3 PRO/RS2, without the need for external power supply.

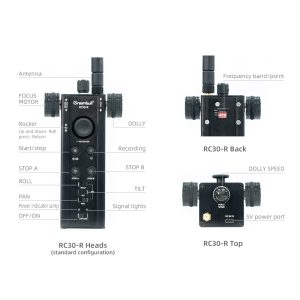

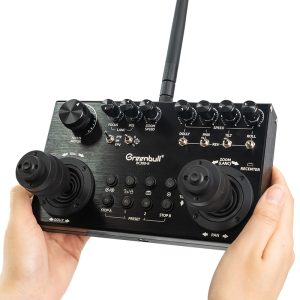

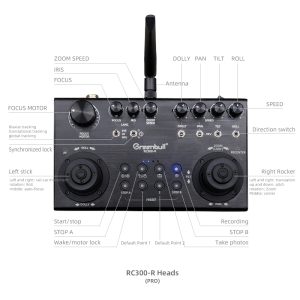

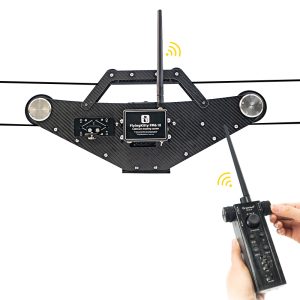

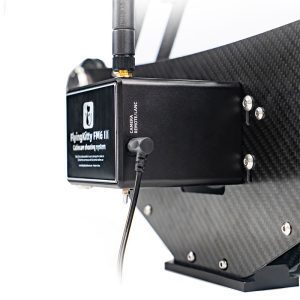

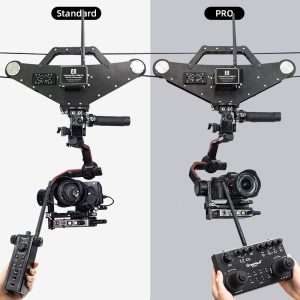

FM6 III is equipped with a new electronic cablecam control system. It boasts a multifunctional remote control with 3D joysticks, which are capable of setting and controlling the dolly, stabilizer, video camera/camera, and follow focus motor. The operations are simple and clear, easy and quick to learn.

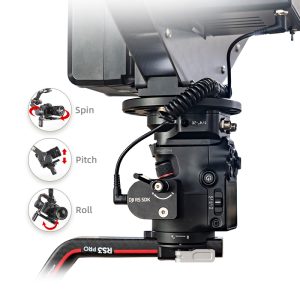

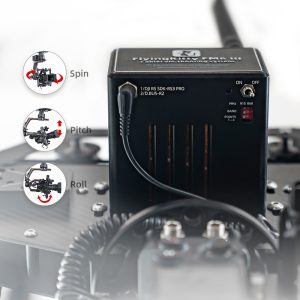

It is highly compatible with the DJI RS SDK protocol, boasting the panning, tilting, rolling, motor locking, neutral and other functions of DJI RS3 PRO stabilizer, as well as follow focus motor control of DJI RS. Moreover, control of the camera’s commonly used functions, such as recording, taking pictures, auto-focus, etc. can be achieved through RS3 PRO.

*Compatible with DJI RS2 stabilizer

It is also compatible with the D.BUS protocol, capable of controlling the panning, tilting, rolling, neutral of DJI R2 stabilizer.

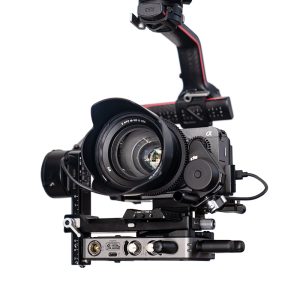

It applies to Sony cameras with multi-purpose ports, such as A7SIII, FX3, FX30, etc., and it’s capable of controlling the zoom*, recording, photo-taking and auto-focus functions of the cameras;

*The above cameras need to be used with motorized zoom lenses for the zoom function to work properly, e.g. Sony E PZ 18-105mm F4 G OSS lens.

It is also compatible with the lanc protocol, suitable for most video cameras with a Φ2.5mm remote control jack, and capable of controlling the zoom, focus, iris, recording and other functions of video cameras, such as Sony Z90/FX6 and other models.

*Software Copyright: Video Camera Remote Control System V1.0; Registration No.: 2020SR0107686

*Please check with the sales staff for compatible camera models.

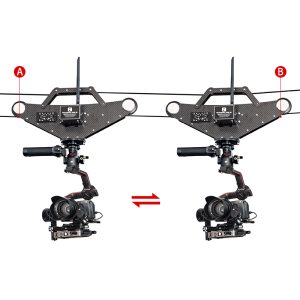

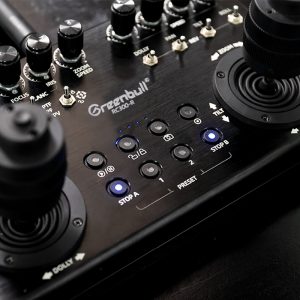

Virtual starting and stopping points (A/B safety points) can be set for the cable dolly through the remote control. No matter the dolly intends to accelerate or decelerate, operate with constant speed or change direction, it can operate within a safe range formed between these two points.

In addition to the safety points, 2 keys can be set. Thus, a total of 4 key points can be preset and the cable dolly can be run to the desired positions at any time as needed.

After presetting the keys, the auto-cruise function could achieve five-axis synchronous operation and cruise shooting, with the cable dolly, stabilizer, follow focus motor and other devices all working simultaneously.

*The synchronous operation takes the speed of the cable dolly as the reference value. When there’s a big difference between the speed of the dolly and that of the stabilizer or the follow focus motor, it will exceed the allowed range of synchronous operation.

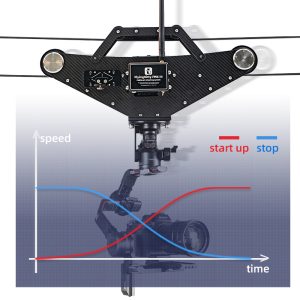

Thanks to the optimization algorithm, the cable dolly will start and stop with corresponding damping buffer according to the speed, so as to ensure gentle and smooth starts and stops.

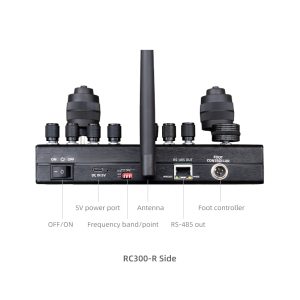

The remote control frequency can be switched between 868 or 915MHZ, with a control distance of more than 100 meters in an open environment. Moreover, switch between 4 frequency points can be achieved in each band, allowing multiple sets of devices to be used in the same scene.

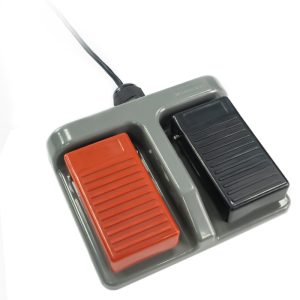

Users can control the cable dolly with pedals according to their own habits *. There are two pedals, left and right ones, to control the forward and backward operations respectively. The user may step on the pedal to control the moving of the dolly, and it will stop as the pedal is released. You can control the dolly as you wish with the pedals.

*The PRO version is equipped with pedals.

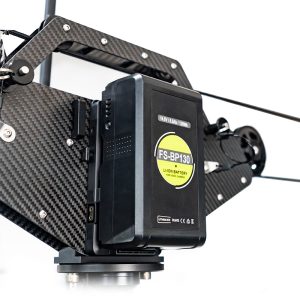

The V-shaped lithium battery will ensure power supply. The battery is easy to use and replace, capable of meeting the need to work for long hours.

*The V-shaped batteries need to be prepared by users themselves or purchased separately.

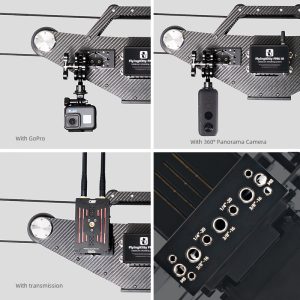

The base is a mounting platform of universal purposes. In addition to the power supply base, the R2 adapter and DJI R2 stabilizer can be installed, too. The multi-functional board on the side can carry a variety of devices such as panoramic cameras, sports cameras, wireless image transmission sensors, spare batteries, etc.

* The R2 stabilizer has a large dead load and bearing load. If the payload exceeds 6kg, the FM6 can not work properly.
